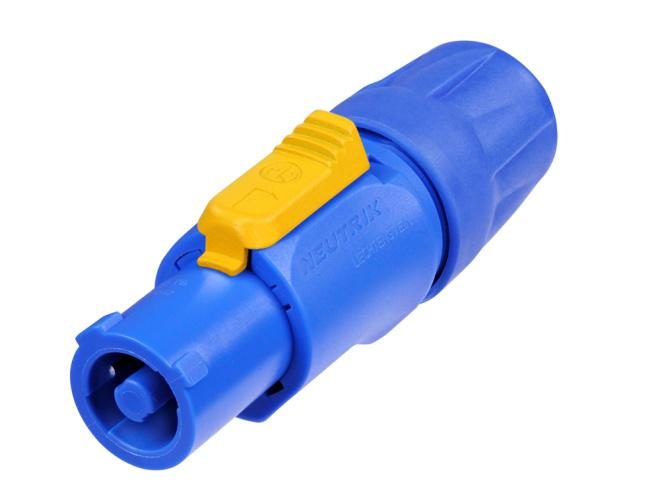

Lockable cable connector, power-in, screw terminals, blue

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• UL, cUL recognized components VDE certified SEV approved
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Information

Product

Title

NAC3FCA

Gender

female

Electrical

Contact resistance

3 mOhm

Dielectric strength

4 kVdc / 2.8 kVac

Insulation resistance

> 0.1 GOhm (after damp heat test IEC 68-2-30)

Number of electronical contacts

2 + PE

Rated current per contact

20 A rms

Rated voltage

250 V ac

Mechanical

Cable O.D.

6 - 15 mm (1)

Lifetime

> 1000 mating cycles

Wiresize

2,5 mm2

Wiresize

14 AWG

Locking device

Quick Lock

(1)

Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material

Contact plating

4 um Ag

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

Polyamide (PA 6 30 % GR)

Strain relief

Polyacetal (POM)

Environmental

Temperature range

-30 oC to +80 oC

.
