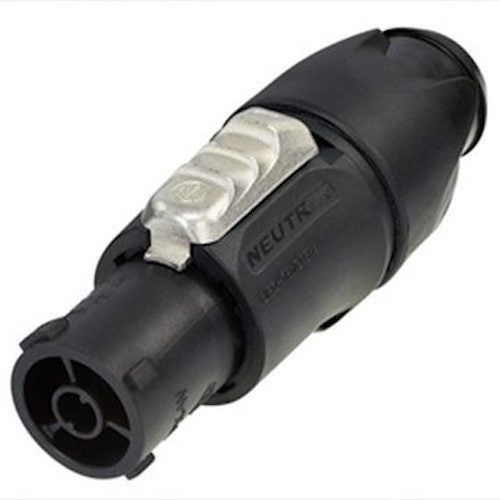

Overview Featuring heavy-duty, sealed construction and a weatherproof IP65 rating, the Neutrik NAC3FX-W-TOP Locking female cable connector replaces appliance couplers in applications where a robust solution is needed, such as outdoor use. This powerCON TRUE1 TOP connector offers breaking capacity (CBC), meaning that it can be connected or disconnected under a load or live. Key Features:

• Heavy-duty sealed power connector for harsh and demanding environments.
• Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
• Uses high-impact UV-resistant materials.
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system.
• Extremely robust and reliable.
• Unique Neutrik cable retention.
• ENEC certified according to IEC 60320
• UL498 certified. Specifications Approvals and Certifications UL, cUL, JET, ENEC IP Rating IP65 Locking Type Screw Terminals Electrical Contact Resistance: 3 mOhms Dielectric Strength: 4 kVDC / 2.8 kVAC Insulation Resistance: > 0.1 GOhms (After Damp Heat Test IEC 68-2-30) Number of Electronic Contacts: 2 + PE Rated Current per Contact: 16 A rms (USA: 20 A) Rated Voltage: 250 VAC Terminals Screw Terminals Mechanical Cable O.D.: 6-12 mm Lifetime: > 5000 Mating Cycles Wire Size: 1-2.5 mm2 Wire Size: 12 AWG Material Contact Plating: 2 um Ag Contacts: Bronze (CuSn0.2) Insert: Polyamide (PA 6.6 30 % GR) Locking Element: ZuAl4Cu1 Shell Polyamide (PA 6.6 30 % GR) Strain Relief: Polyacetal (POM) Environmental Flammability: UL 94 V-0 Protection Class: IP65, UL50E Enclosure Type 4 (Mated) Temperature Range: -22 to 176o / -30 to 80 oC
