Description

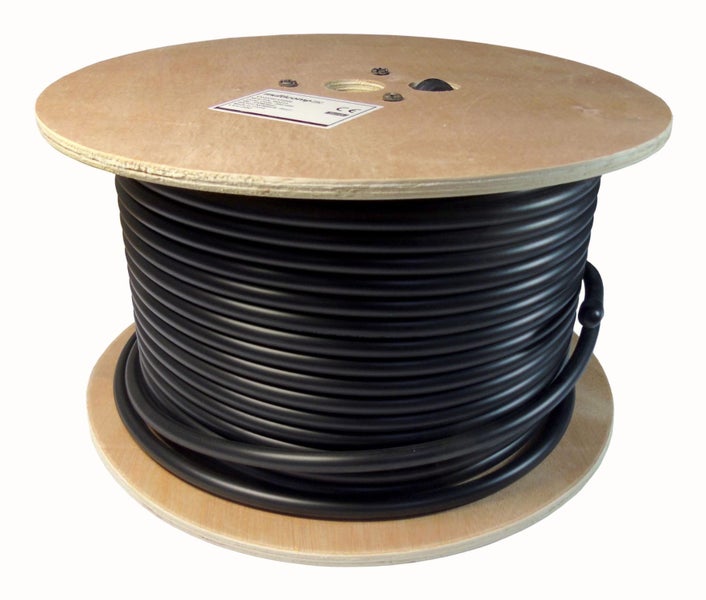

RG213 50 Ohm Coax Low Loss 100m 10.3mm Electrical Characteristics Impedance : 50Ohm 2Ohm Capacitance : 101pF/m Velocity of Propagation : 66% Max. Operating Frequency : 1GHz Max. Operating Voltage : 3700 rms Corona Extinction Voltage : 5000Vrms Voltage Withstand : 10000Vrms Spark Test : 5000Vrms Operating Temp. Range : -40oC to +85oC Attenuation (@20oC) Frequency (MHz) Attenuation (dB/100ft) Attenuation (dB/100m) 10 0.6 1.8 50 1.3 4.3 100 1.9 6.2 200 2.9 9.5 400 4.2 13.8 600 5.5 18.2 860 6.8 22.3 1000 7.5 24.5

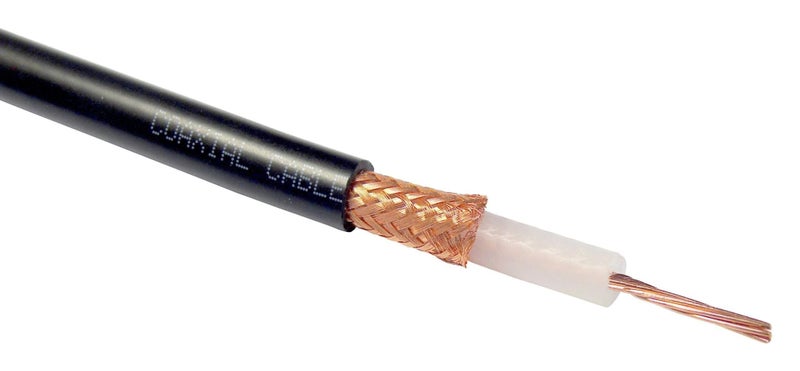

Construction Item Material Diameter (Inch) (mm) Inner Conductor Stranded Bare Copper 7/0.029 0.001 7/0.75 0.03 Dielectric Solid PE 0.285 0.007 7.25 0.18 Shield 90% Bare Copper Braid 0.321 0.007 8.15 0.18 Jacket PVC-black 0.406 0.007 10.3 0.18
Details
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Nationwide 2-3 days, Standard | $12.00 | |
| Nationwide 2-3 days, Standard, Signature | $13.00 | |
| North Island 2-3 days, Standard | $15.00 | |
| North Island 2-3 days, Standard, Signature | $16.00 | |
| Pick-up available from Hamilton, Waikato | Free | |
Estimated delivery times in business days
Payment Options
Pay instantly by card, Ping balance or saved bank account.
Four fortnightly interest-free payments.
Questions & Answers
RG213 50 Ohm Coax Low Loss 100m
