Description

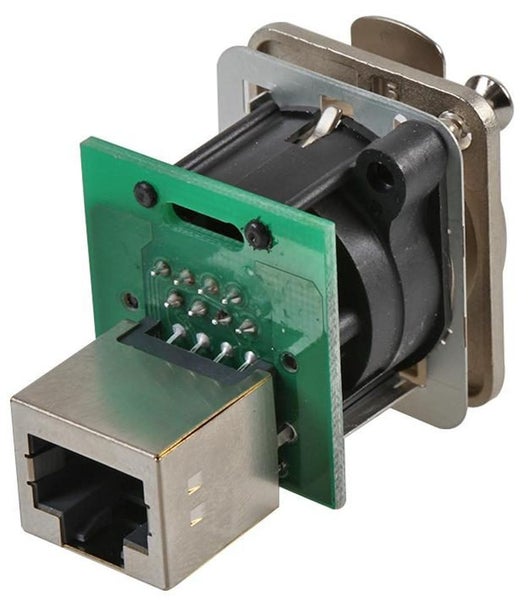

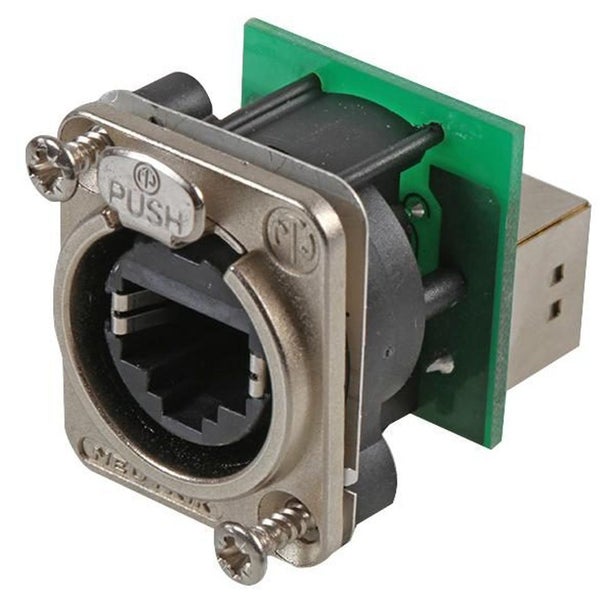

The NE8FDP from Neutrik is a RJ45 feed through receptacle in D shape metal flange. The chassis connector is shaped to fit into standardized panels out of the entertainment industry. The D series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Connector is optimized for pro audio, video and lightning network applications. Approved latch lock system Mountable from the front or rear of the panel Bronze (CuSn8) contacts with 0.2 m Au over Ni plating Zinc die-cast (ZnAl4Cu1) shell with nickel plating UL94 V-0 flammability Lifetime > 1000 mating cycles Rated current per contact is 1.5A Rated voltage is 50VAC TIA/EIA 586B, IEC11801 compliance Temperature range from -30 C to 80 C Applications Audio, Lighting, Communications & Networking, Industrial Footnotes Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.
Details
