Description
XLR TO RCA CONVERTER
FEATURES

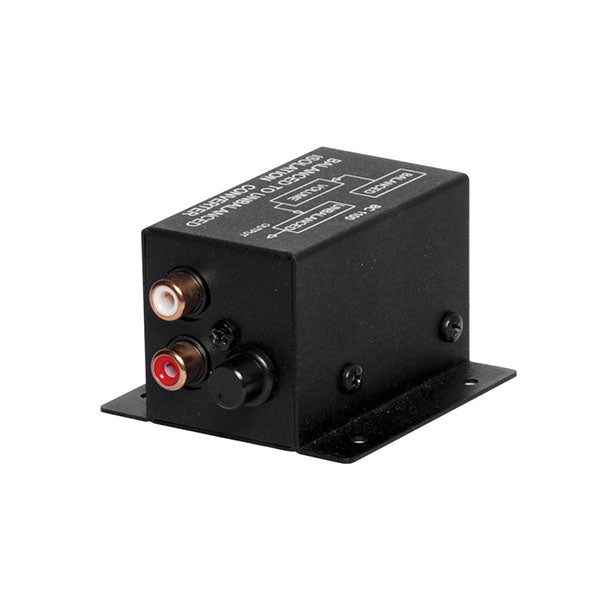

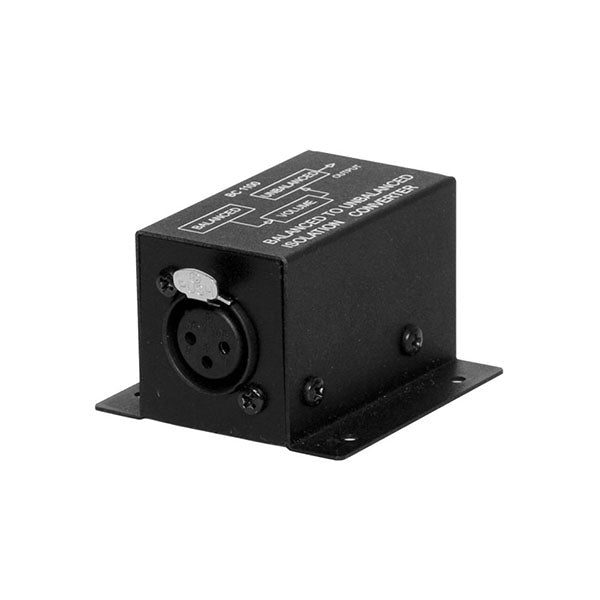

Balanced To Unbalanced Converter XLR-RCA
Balanced 600 Ohm 3 pin female XLR to unbalanced 10K Ohm 2 x RCA with level control. +10dB max signal gain
Steps up input signal by factor of 16, ie 20mV in = 320mV out
For unbalancing a line level signal (converting a balanced signal to unbalanced as an isolation unit to prevent hum loops in audio systems
SPECIFICATIONS
Frequency response: 20 Hz - 20kHz +/- 3dB
Input level: 0.775Vrms
Output level: 1.97Vrms
(measured at 1kHz with volume control set to max).
Maximum output level before distortion: +24dBm
Note: The RCA output sockets are in parallel
PACKAGE CONTENT
1 x Xlr To Rca Converter
