The metal chassis mount a Za series (D Type) connectors are designed for the audio userA where durability, reliability and strengthA across a wide range of applications areA important. All AC products are manufacturedA to the highest quality standards and willA withstand the harshest environments. ThisA range complies with IEC268-12 and AESA 14-1992 standards. CSA File Number 68598.

Note:A A ground tag is standard on all ACA a Za series connectors. Although the groundA tag is intended for RFI shielding applications,A Amphenol cannot guarantee its effectivenessA in all cases.

The non-conductive Black polyester finishA insulates the ground tag from the shell andA should not be used in applications requiringA ground contact to the shell.

A

Machined Contacts / Solder Bucket / Black Finish

Standard Plating

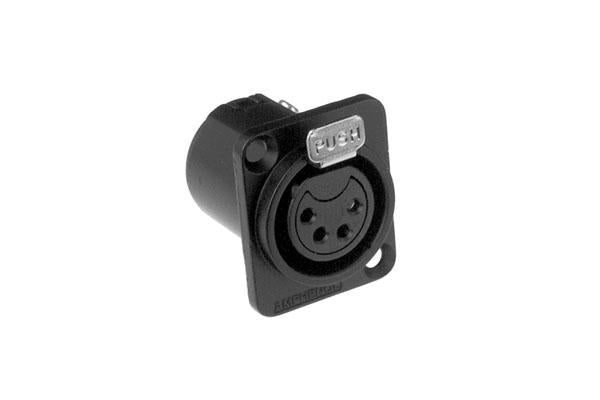

AC4FDZB

A

Features

The a Da size housing can be either front orA rear mounted using the same panel cutout

A leading first mate last break socket contactA is standard on all female connectors (Pin 1)

Solder cup or Vertical PCB versions

Connectors are fitted with a groundingA system for RFI shielding applications

Available in 3, 4, 5, 6A and 7A contact arrangements.

Compatible with all other XLR brands
