Description

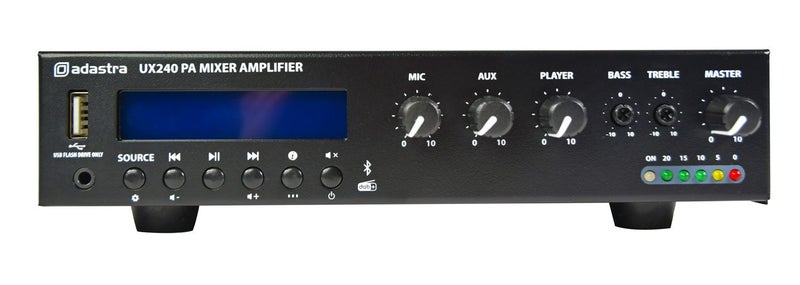

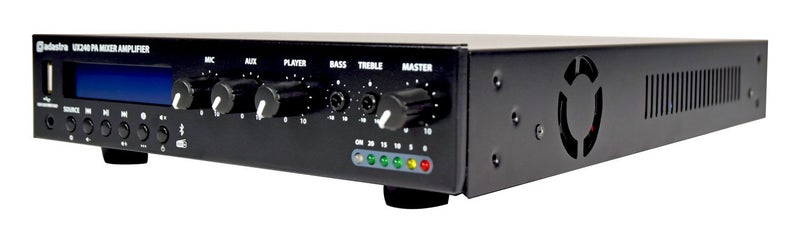

Compact 100V Mixer-Amplifier 240W

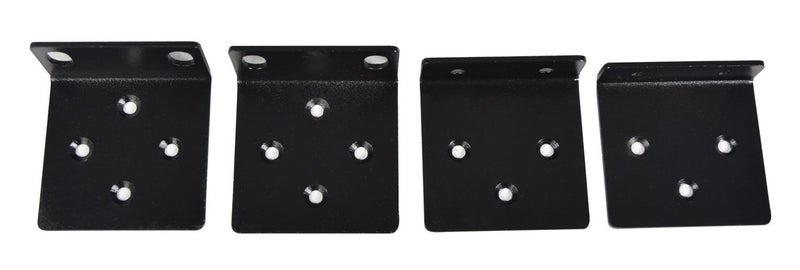

The amplifier produces a high power output to either 100V line or low impedance speaker loads down to 2 ohms, switchable via a DIP switch and connected on screw terminals, with level governed by a Master volume control and EQ handled by mini Bass and Treble rotary controls. Each amplifier is supplied with brackets for mounting 2 units side by side in a 1U 19" rack or fitted to flat-mount the amplifier against a wall or under a counter-top. With a minimal control footprint and easy-to-manage controls, these mixer-amplifiers represent a versatile platform to build a public address installation for medium-sized areas or paired with further amplifiers as part of a wider sound system.
Bluetooth, DAB+/FM and USB media player Bass & Treble EQ Low impedance stable down to 2 Ohms Half-width 1U rackmount or surface-mountable Output power rms 240W Dimensions 350 x 210 x 54mm Weight 4.32kg Power supply 170-264Vac, 50Hz (IEC) Amplifier : construction Class D + transformer output Audio source Internal USB/DAB+/FM/BT player Inputs 1 x Mic (jack/XLR), 1 x Line (2 x RCA), 1 x Aux (3.5mm) Line output 2 x RCA (mono) Speaker outputs Screw terminals - 100V / 2 Ohms / Com Mute 24V relay contacts Input impedance 1k Ohms (mic/line) Input sensitivity -10dB (line), -45dB (mic)
Please note: DAB radio not currently available in NZ
We have two stores in Auckland and welcome pickups
To find us click the view store link at the bottom of the listing
https://www.trademe.co.nz/stores/sound-division/contact-us
Albany, North Shore Henderson, West Auckland
Why buy from us:
- All stock in NZ ready to ship
- 33 years in business
- Best shipping costs (no inflated rates to hide the real cost)
- Very fast delivery
- We are sound and light experts with 2 retail locations where we welcome pick ups
- We are a GST registered business and offer a warranty & GST receipt with every sale.
