Description

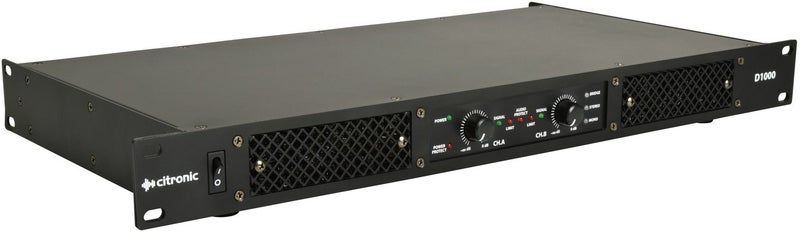

D-Series Class-D Power Amplifier
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.
Cool and efficient operation even at high output Compact and lightweight 1U rack format Switchable parallel and bridge modes Power rms @ 4 Ohms - 2 x 500W
Power rms @ 8 Ohms - 2 x 300W
Bridge power @ 8 Ohms - 1 x 1000W
Power supply 240Vac, 50Hz (IEC)
Modes Stereo, Parallel (mono), Bridge (mono)
Input sensitivity 0.775V - 1.0V - 1.44V switchable
Low-cut filter 75Hz switchable

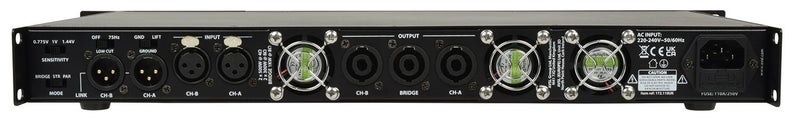

Input connections L+R XLR female (L+R XLR male through)
Output connections L+R SPK connectors (+1 for bridge mode)
Dimensions 482 x 245 x 44mm
