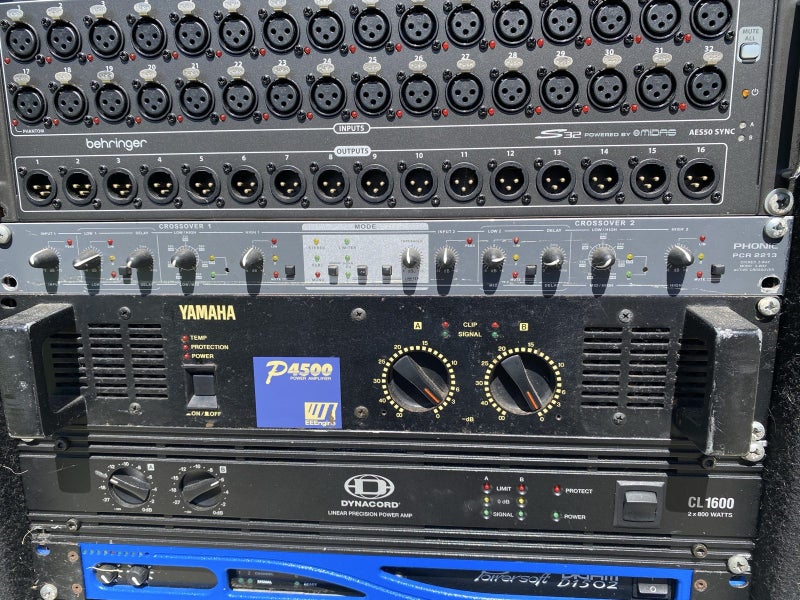

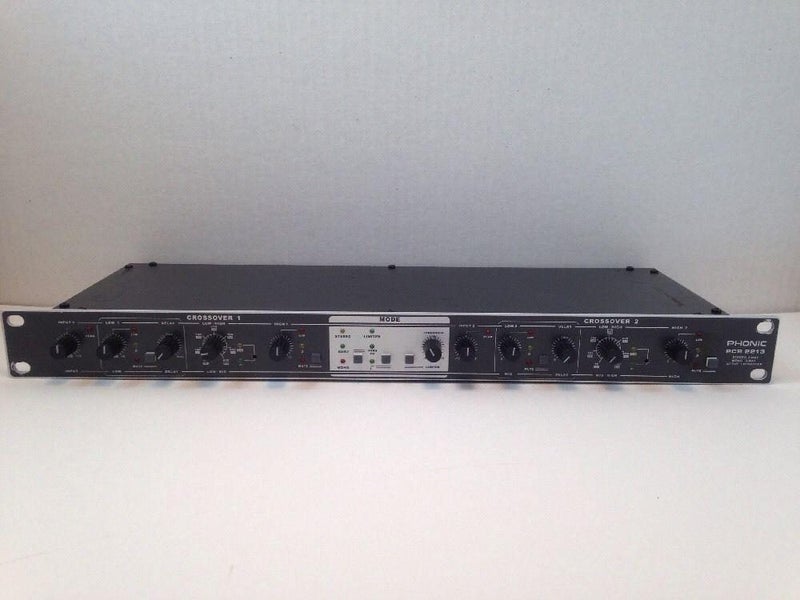

Phonic Cross Over – PCR 2213

Full Working Order - Reliable Work Horse

PCR 2213 is very suitable for sub-woofer application - very high quality active crossover. It is designed with 2, 3 or more way speaker systems in mind

cross- over frequency is low at 80~200Hz

Info link: https://www.youtube.com/watch?v=8SPlnav3cnI

Key Features:

• Stereo 2-way or mono 3-way operation
• Reasonable ways speaker system with multiple PCR2213
• Industrial standard state variable 24 dB/octave Linkwitz-Riley filters with zero phase error at crossover frequencies
• Perfect flat summed amplitude response at all crossover frequencies
• Independent limiters on all outputs with pre-defined time parameters
• Latching mute push buttons on all outputs, vital during setting up and troubleshooting
• LED indication on all important switching functions for easy status identification
• Crossover frequencies continuously variable from 80 – 8000 Hz
• Time/phase alignment via polarity switches and 4 ms time delay controls
• Switchable horn EQ curve to compensate the HF roll-off
• RF and Subsonic input filters
• High precision components and potentiometers ensure excellent quality and accuracy of settings
• Servo-Balanced XLR inputs and outputE

output capacity : 460 W+460 W (8W) in stereo and 1240 W (8W) in monaural
