Description

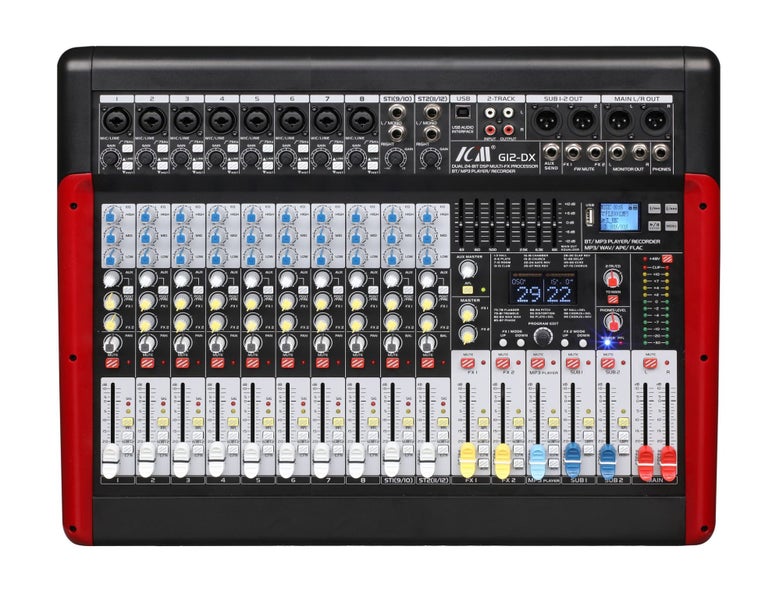

Product Name: 12 Channel Mixer Model : G12-DX Brand: ICM Warranty:12 Months
Specifications:
Maximum input level: MIC +24dBu, Line +24dBu, Other Line +20dbu
Maximum output level: XLR +26dBu , TRS +20dBu
Master meters: 12 segment -30dB to CLIP
Channel meters: 1 LED signal indication
Frequency response: 20Hz to 30KHz 0.5dB
CMRR (MIC 1kHz): >75dB
THD+N: <0.01%(Channel to mix out)
Crosstalk at 1kHz: Fader shutoff >85dB; Mute shutoff >85dB; lnter channel >82dB
Noise,rms 22Hz to 22KHz: EIN -122dBu; Residual output noise <-90dBu; L/R main mix noise <-82dBu; Aux mix noise <-82dBu
MONO EQ:
HF, shelving, +/-15dB, 2KHz;
MF, peakldip, +/-15dB, 2.5KHz;
LF, shelving, +/-15dB, 80Hz
Stereo EQ: HF, shelving, +/-15dB, 12KHz; MF, peakldip, +/-15dB, 2.5KHz; LF, shelving, +/-15dB, 80Hz
Mono channel: XLR balanced, pin 2 hot,2K ohm,Sensitivity -60 to +14 dBu; TRS balanced, tip hot,10K ohm, Sensitivity -40 to+14 dBu; XLR, phantom +48V
Stereo channel: TRS balanced, 20K ohm, Sensitivity -40 to +14 dBu
2-track return: RCA, unbalanced,4K ohm,-2 dBu
2-track send: RCA, unbalanced,<75 ohm,-2 dBu
DSP effect processor: 24-bit sigma-delta,64/128-times over sampling, rate 40KHz
L/R output: XLR balanced, pin 2 hot,<75 ohm,+4 dBu,Max.+26 dBu
SUB 1-2 output: XLR balanced , pin 2 hot,<75 ohm,+4 dBu,Max.+22 dBu
FX/AUX output: TRS unbalanced, tip hot,<75 ohm,-2 dBu,Max.+18 dBu
Headphones: TRS, tip L, ring R, 30 to 600 ohm headphones recommended
Max.Power input power: Mixing console type 6/8/10 CHANNEL 40watts
Dimensions: 514 x 402 x 108mmH Net weight: 5.4KG
There will be NO remote controller although the manual might say it comes with the mixer
