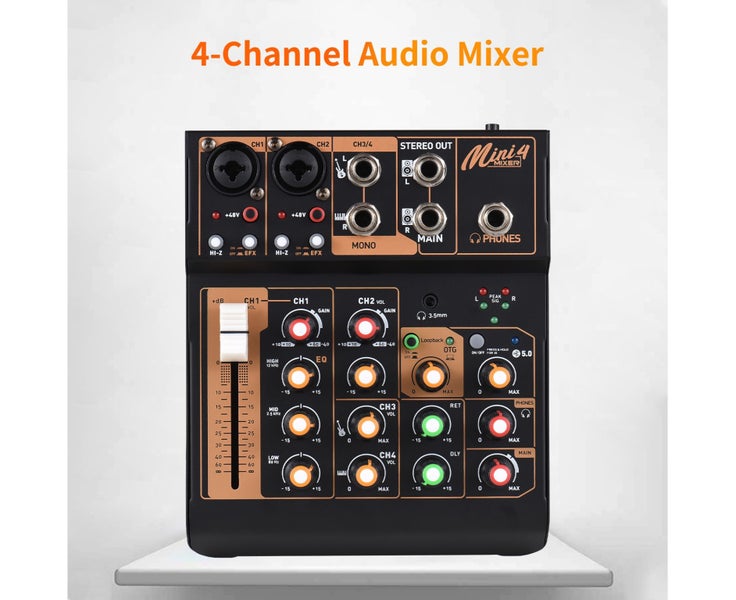

Audio Mixer Portable 4-Channel DJ Mixer Console Mini Sound Mixing Board with USB BT 48V Phantom Power 3-band EQ Loopback Button Audio Console

balanced, split input

Frequency Response Range: 20Hz-22KHz1dB

Distortion (T.H.D&N): 0.01% at+4dB, 1kHz, bandwidth 80kHz

Decibel Signal-to-Noise Ratio: 110dB/112dB

Gain Range:+10dB-60dB input

Impedance: Approximately 2.60¦¸ balanced

Line input: Balanced Input (type: 1/4 "TRS electronic balance connector)

Frequency Response Range: 10Hz-60KHz3dB

Distortion (T.H.D&N): 0.01% at+4dB, 1kHz, bandwidth 80kHz

Signal to Noise Ratio:90dB

Input Impedance (impedance): Approximately 20¦¸ balanced, 10¦¸ unbalanced

Line Output: 6.35mm dual channel and mono output (type: 1/4 "TRS connector electronic balance, 1/4" TS connector unbalanced)

Output Impedance (impedance): Approximately 240symm/ 120unbalanced

DSP Core: ARM Cortex-M3

Converter: Dual channel 20 bit Delta ADC, signal-to-noise ratio90dB, dual channel 20 bit analog-to-digital conversion, signal-to-noise ratio below 90dB.

Two stereo lines in the channel

IIS Digital Audio Output/Input

Supports BT 5.0 connection

Support Sampling Rate: 192kHz

Total Harmonic Distortion: Lashin<0.03%1kHz

Maximum Input Level of Microphone: 16dBu

Maximum Input Level of The Line: 30dBu

Maximum Input Level of Stereo Sound: 20dBu

Earphone Output: (2002) 300mW

Other Outputs: 20dBu

Equalizer: High frequency: 12KHz,/-15dB Low frequency: 80Hz,/-15dB

Power Consumption: 10W

Product Size: 1517.74cm/5.971.6inch

?

Note:

The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

Please allow slight manual measurement deviation for the data.

?

Package List:

1Mixing Console

2USB Cable

1Instructions
