Description
5-Channel Mixer with Amplifier DSP/BT/SD/USB/MP3

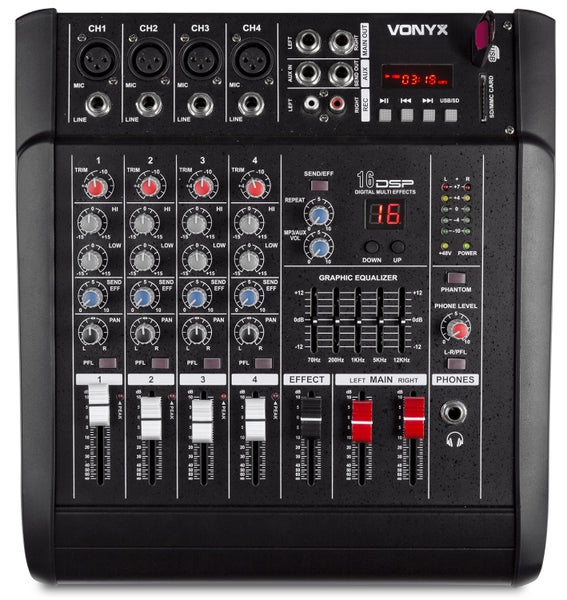

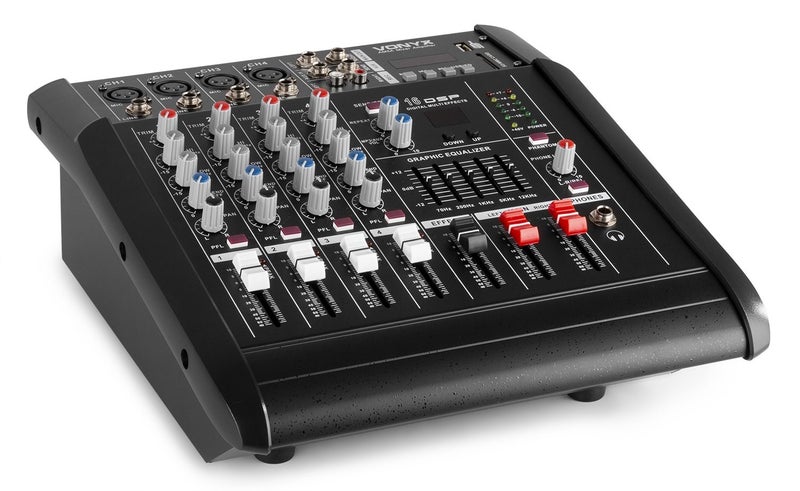

AM5A 5-Channel Mixer with Amplifier DSP/BT/SD/USB/MP3 This 5-channel mixer holds a 2x 500W amplifier. Giving the user a complete unit as base for this setup. With 4 microphone and line inputs it's ideal for live performers on stage. 16 digital effects give you plenty of room to fine tune your sound.
2x 500W power amplifier MP3 player with USB port and SD slot Using BT wireless technology for audio streaming +48V phantom power Single 7 band EQ 16 digital effects (DSP) PFL per channel RCA line input Tone control per channel 6.3mm outputs (L+R)
SPECIFICATIONS Output power: 4 Ohms 2x 500W Output power: 8 Ohms 2x 300W Frequency response 20Hz - 20kHz THD <0.1% Equalizer: High ± 15dB / 12kHz Equalizer: Low ± 15dB / 70Hz Input:Line +5dB ~ -40dB Input:Mic -15dB ~ -60dB Output level +12dB (3V) Output:Record 0dB (775mV) Headphone output 300mW @ 32Ohm Headphone:Impedance 32Ohm Signal to noise ratio >90dB Power supply 230VAC / 50Hz Dimensions 320 x 300 x 140mm Weight 5.9kg
We have two stores in Auckland and welcome pickups
To find us click the view store link at the bottom of the listing
https://www.trademe.co.nz/stores/sound-division/contact-us
Albany, North Shore Henderson, West Auckland
Why buy from us:
- All stock in NZ ready to ship
- 33 years in business
- Best shipping costs (no inflated rates to hide the real cost)
- Very fast delivery
- We are sound and light experts with 2 retail locations where we welcome pick ups
- We are a GST registered business and offer a warranty & GST receipt with every sale.
