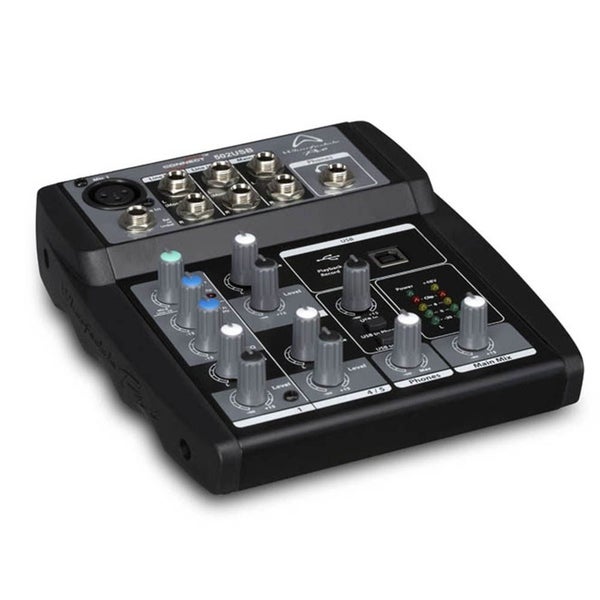

WHARFEDALE CONNECT 502 MINI MIXER USB

The Connect Series from Wharfedale Pro are high quality micro-mixers that are suitable for a wide range of applications.

Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. The Microphone pre-amplifiers use the same high quality components and construction methods that are employed in the recently released SL Series Mixers.

The Connect 502 features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 502 will fit into any situation you need.

Features:

• Switchable Global +48V Phantom Power
• Clip LED's on Mic/Line Channels
• 1x Balanced XLR Mic Input
• Pan/Balance Controls On All Channels
• 2x Stereo Channels with Balanced/Unbalanced ¼" TRS Jacks
• Separate Main Mix and Phones Outputs with Level Controls
• Stereo 4 Segment LED Meters
• Stereo 1/8” and ¼" Headphone Outputs

Specifications:

Hum and noise : -127dB Mic Pre Equivalent Input Noise/ -95dBu Residual Noise

Maximum Input Level

• Mic In +10dBu
• Line In +20dBu
• 2TK In +20dBu

Maximum output level : +22dBu

Mono input channel gain : 50dB Variable (-500dB)/ (-40dB +10dB)

Level meters : Dual 4-Segment LED

Clip Indicator : Turns on at approx +16dBu

Frequency Response : 20Hz-20kHz ±1dB

Weight: (kg/lb) : 1.64kg / 0.66kg (3.62lbs / 1.46lbs)

Maximum Headphone Output Level : >150mw @ 32 ohms

Input Channel EQ : High (±15dB) 12kHz Shelving/ Low (±15dB) 80Hz Shelving

AC power : 100120V; 220240V, 50/60Hz

THD : <0.0025% @ +14dBu

Dimensions (H x W x D) : 253mm x 77mm x 226 mm/ (9.96" x 3.03" x 8.90")/ 486mm x 267mm x 240 mm/ (19.13" x 10.51" x 9.45")
