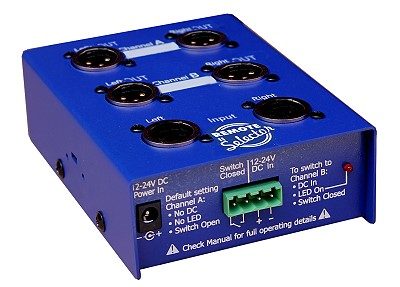

Remote Selector The simplest ideas are usually the best! ARX's new Remote Selector is a stereo out signal selector for the extremely popular Audibox range. The new Remote Selector silently switches a stereo pair of XLR female input connectors to either A or B pairs of male XLR outputs ARX 'SoftSwitch' technology achieves this with no loud bangs through the audio system when switching. Output Channel control can be selected in 2 ways:

Mode 1 by remote switch / relay closure (using an external power pack / wall wart), or Mode 2 by 12 - 24VDC

With no DC voltage applied, Output A, the default normal audio signal, is selected. When +12 - 24VDC is applied to Pins 3 and 4 on the Dinkle type connector, then Output B is selected. Typical applications include remote controlled zoning, loudspeaker selection, and A-B comparison of audio units. Another useful application is remotely switching between 2 bands, or Live Band and DJ when both are using different Speaker system. Note - Connectors are inserted in the top of the unit. Please allow adequate space above the Remote Selector to allow for the connectors to be removed or inserted. Specifications:

Frequency Response:

10Hz to 50KHz + - 0.5dB

Power Requirements:

DC Input +12 - 24 VDC Connector 2.5mm center pin

Remote Switch and External Input:

4 Pin Dinkle type socket, 5mm pin spacing. Connector supplied with unit

Pin 1 and 2 Remote Switch - Open Input = Channel A selected, Closed Input = Channel B selected. Pin 3 and 4 Remote DC control - Pin 3 +12 - 24VDC Pin 4 0VDC / Gnd

Input Connectors:

Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold

Output Connectors A and B:

Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold

Chassis Ground/Earth:

Via Pin 1's on Left Channels

Construction:

All-steel polyurethane coated chassis, fibreglass PCB

##-
