Product Features

• "D-PRE" mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus

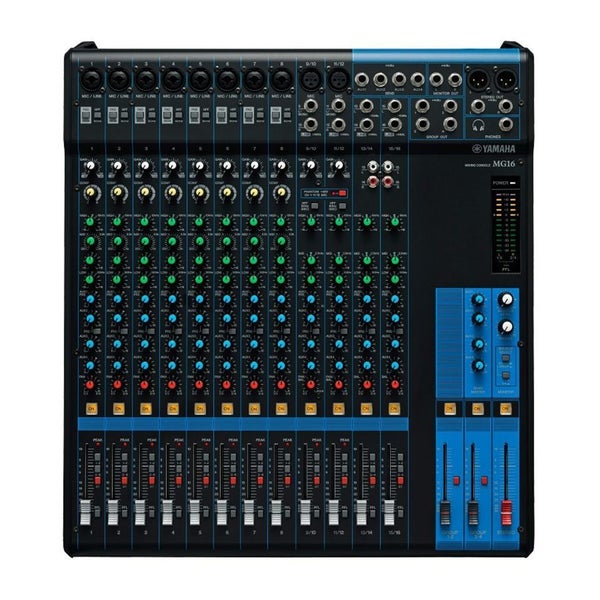

• 4 AUX (incl. FX) Feature-rich and delivering outstanding sound quality, the Yamaha MG16 Analog Mixer is well-suited for portable rigs or permanent installations. The MG16's quality op-amp ensures that your mix sounds transparent and articulate. The MG16's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16 can take on just about any task you throw at it. Utilising many state-of-the-art features from Yamaha's high-end consoles, the MG16 is ready to work for you! Key Features:
• 16-Channel standalone mixer (no USB or effects)
• Featuring studio-grade discrete class-A D-PRE preamps with inverted Darlington circuit - providing fat, natural sounding bass and smooth, soaring highs
• 3-band EQ and high-pass filters give you maximum control and eliminate unwanted noise, resulting in a cleaner mix
• 1-Knob compressors allow easy control - resulting in livelier guitars, punchier bass lines, a tighter snare and a cleaner vocal sound.
• MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis Specifications I/O Phantom power +48 V Input Channels Mono[MIC/LINE] 8 Mono/Stereo[MIC/LINE] 2 Stereo[LINE] 2 Output Channels STEREO OUT 2 MONITOR OUT 1 PHONES 1 AUX SEND 4 GROUP OUT 4 Bus Stereo 1, GROUP: 4, AUX: 4 Input Channel Function PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking EQ LOW Gain: +15 dB/-15 ...
