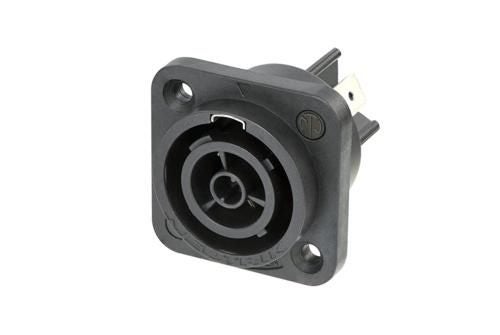

Appliance outlet connector, 1/4" flat tab terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits

• Heavy duty sealed power connector for harsh and demanding environment

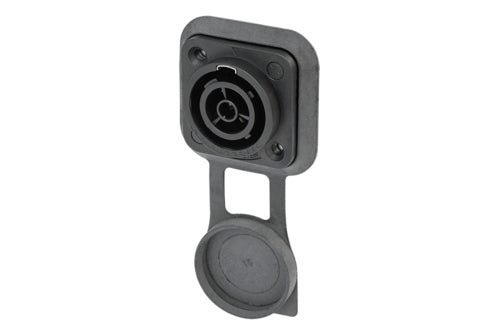

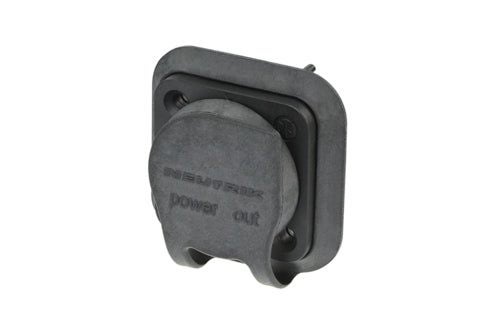

• IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Extremely robust and reliable
• Unique Neutrik cable retention
• ENEC certified according to IEC 60320
• UL498 certified

Technical Information

Product

Title

NAC3FPX-TOP

Electrical

Contact resistance

3 mOhm

Dielectric strength

4 kVdc / 2.8 kVac

Insulation resistance

> 0.1 GOhm (after damp heat test)

Number of electronical contacts

2 + PE

Rated current per contact

16 A rms (USA: 20 A)

Rated voltage

250 V ac

Mechanical

Lifetime

> 5000 mating cycles

Wiresize

2.5 mm2

Wiresize

12 AWG

Material

Contact plating

2 um Ag

Locking element

Stainless steel

Shell

Polyamide (PA 6.6)

Contacts

Spring Copper (CuSn0.2)

Environmental

Flammability

UL 94 V-0

Protection class

IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)

Temperature range

• 30 oC - +80 oC

##-
