Description

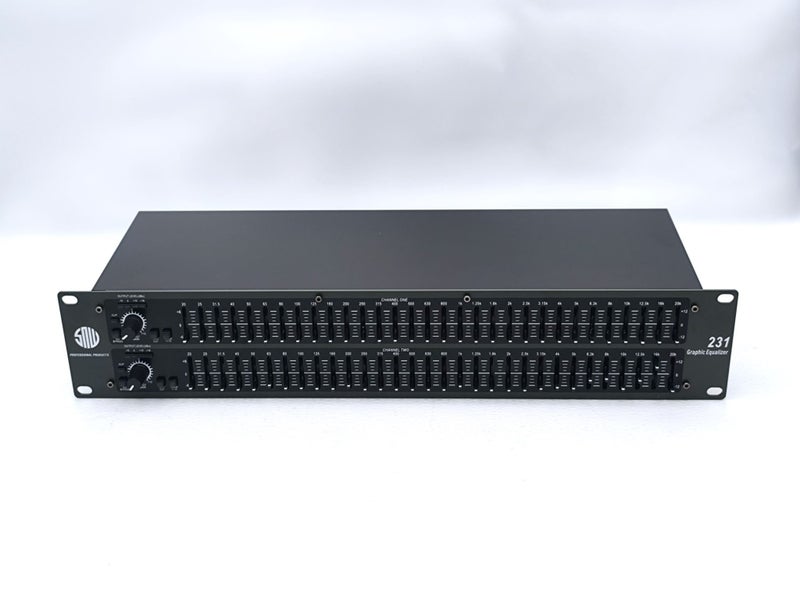

Product Name: Dual 31 Band Equalizer Model : EQ-231 Color : Black Warranty: 12 months
Chassis measurement: 435mmL x 130mmW x 90mmH
Equalizer features:
- TRS or XLR balanced in and outputs differential.
- Option from the left and right channel stereo or the sum of the synthesis of ultra-low sound.
- The two channels have the x10 range selector switch.
- Two channels have 40Hz high pass filter (low cut) all the outputs with phase reverse switch.
- All the band's output can be independently adjusted average dB / Linkwitz-Riley filters (professional standards).
- Stereo / mono status indication LED light, indicating that the choice of unit of work pattern.
- Selectable boost / cut ranges: 6dB and 15dB, electronic balanced / unbalanced inputs, servo balanced / unbalanced output.
- Input and output are equipped with radio frequency filter XLR, row-like terminal blocks, and 1 / 4 "TRS interfaces,-12dB / +12 dB input gain range, 18dB / octave 40Hz Bessel low frequency switching filter Chassis / signal ground lift capability.
- built-in power supply, turn off the power relay hard wire bypass and 2 seconds of power-delay.
Technical parameters:.
Structure: 2U. Channel separation: RF Filtered Servo- balanced Input. Frequency response: 20Hz ~ 20KHz, +0 /-0.5dB. constant Q value of the gain attenuation: 12dB. In addition to filter low-frequency earnestly: 12dB attenuation switch can be selected in 40Hz. working level:-100dBu ~ + 4dBu. Input impedance: 40K balanced, 20K unbalanced. maximum output level: +21 dBu. Input Level Control:-12dB ~ +12 dB. Output Impedance: 51K balanced, 120K imbalance. output level display: LED light Bargraph: -10dB, 0dB, +10 dB and 18dB. total harmonic distortion: <0.003% @ 1KHz. SNR noise (rof.0.775rms):> 90dB. Power: AC230V/50Hz 18W
We have a physical shop located in Auckland Airport Oaks/ Mangere area, you are welcome to come & pick up. (opening hours: Mon-Fri 10am-6pm, Sat 12pm-5pm; closed on Sundays & public holidays)
