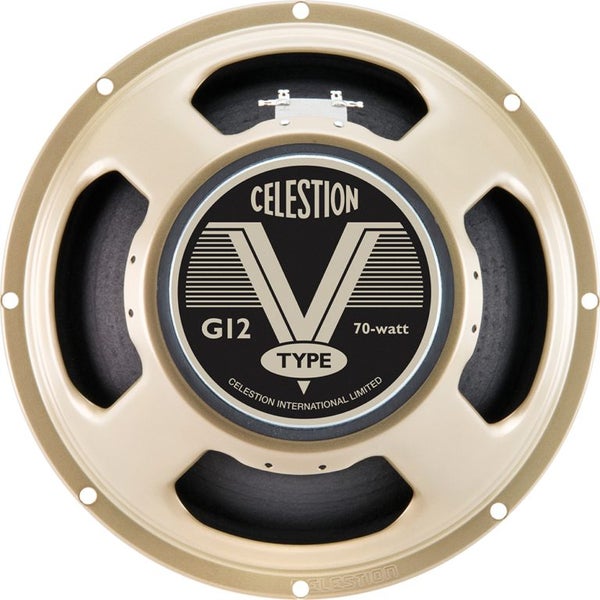

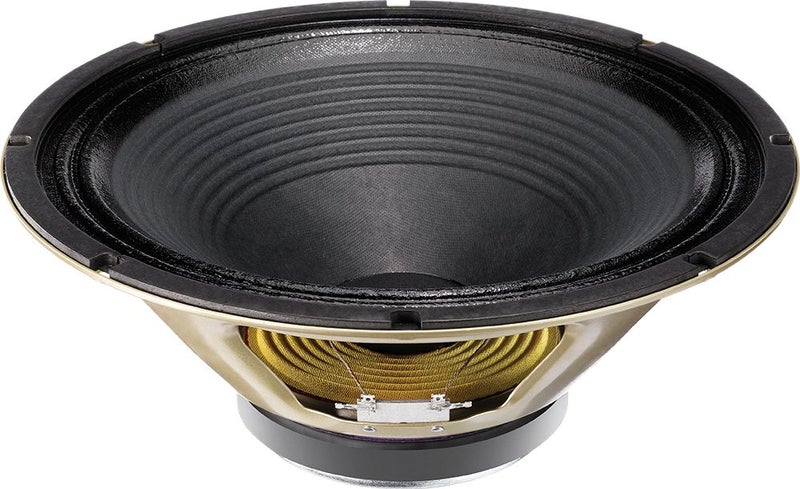

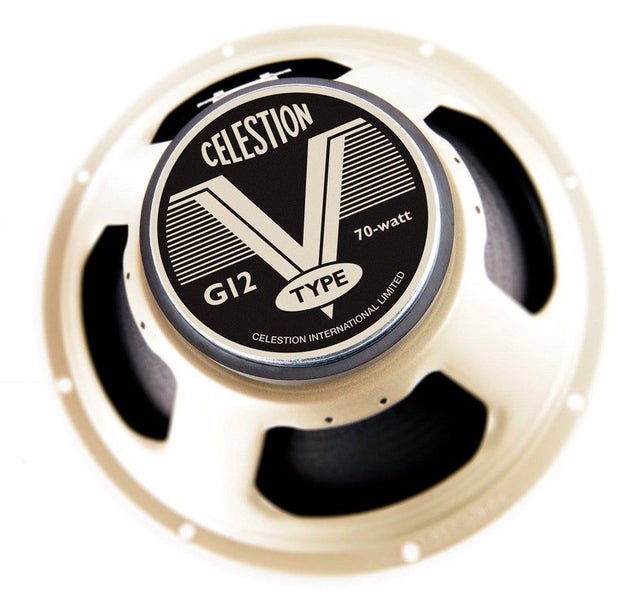

Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques. It produces a heady, exciting modern vintage sound that just makes you want to keep on playing: a guitar speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows, mids and highs, with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones, with plenty of mid-band warmth to give body and substance to lead note playing Listen to a sound clip of this speaker here! General Specifications

Nominal diameter

12", 305mm

Power rating

70Wrms

Nominal impedance

Available 8Ohm or 16Ohm

Sensitivity

98dB

Chassis type

Pressed steel

Voice coil diameter

1.75", 44.5mm

Voice coil material

Round copper

Magnet type

Ceramic

Magnet weight

31oz, 0.88Kg

Frequency range

70-5000 Hz

Resonance frequency, Fs

75Hz

DC resistance, Re

7.3Ohm

Mounting Information

Cut-out diameter

11.1", 283mm

Diameter

12.2", 309mm

Magnet structure diameter

5.3?, 134mm

Mounting slot dimensions

0.31", 7.9mm

Mounting slot PCD

11.7", 297mm

Number of mounting slots

8

Overall depth

4.84?, 123mm

Unit weight

7.2lb, 3.3kg

##-
