Description

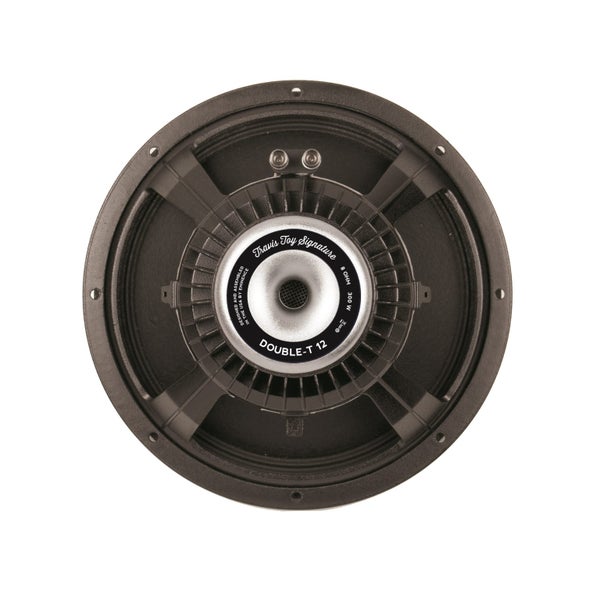

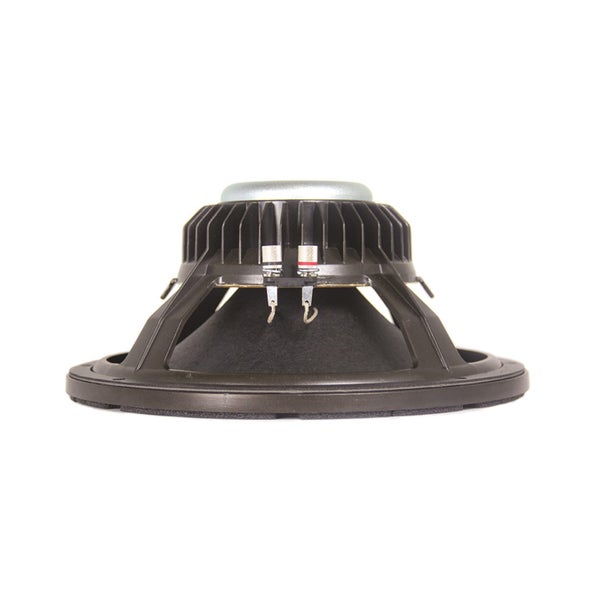

Rated at 300 watts, the Travis Toy Signature Double-T 12 pedal steel guitar speaker features a tight low end, a midrange bite that can cut through a mix, and detailed high end without being too bright. Travis worked closely with the engineers at Eminence to achieve these characteristics and even managed to pack them all into a 12 inch speaker that weighs just over 7 lbs ? less than half the weight of the speakers he replaced.
SPECIFICATION
Nominal Basket Diameter
12", 305 mm
Nominal Impedance*
8 Ohm
Power Rating*
Program Power
N/A
Watts
300 W
Resonance
53 Hz
Usable Frequency Range
50 Hz - 3.8 kHz
Sensitivity*
100.2 dB
Magnet Weight
11 oz.
Gap Height
0.36", 9.1 mm
Voice Coil Diameter
3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
53 Hz
DC Resistance (Re)
5.6 Ohm
Coil Inductance (Le)
0.57m H
Mechanical Q (Qms)
19.59
Electromagnetic Q (Qes)
0.3
Total Q (Qts)
0.3
Compliance Equivalent Volume (Vas)
63.69 liters / 2.25 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
122.1 cc
Mechanical Compliance of Suspension (Cms)
0.17 mm/N
BL Product (BL)
18.23 T-M
Diaphragm Mass Inc. Airload (MMs)
54 grams
Efficiency Bandwidth Product (EBP)
177
Maximum Linear Excursion (Xmax)
2.35 mm
Surface Area of Cone (Sd)
519.5 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
Acceptable
Vented
Acceptable
Driver Volume Displaced
0.09 cu.ft. / 2.54 liters
Overall Diameter
12.38", 314.5 mm
Baffle Hole Diameter
11.04", 280.4 mm
Front Sealing Gasket
Yes
Rear Sealing Gasket
Yes
Mounting Holes Diameter
0.28", 7.1mm
Mounting Holes B.C.D.
11.62", 295.2mm
Depth
5.63", 143 mm
Ne...
