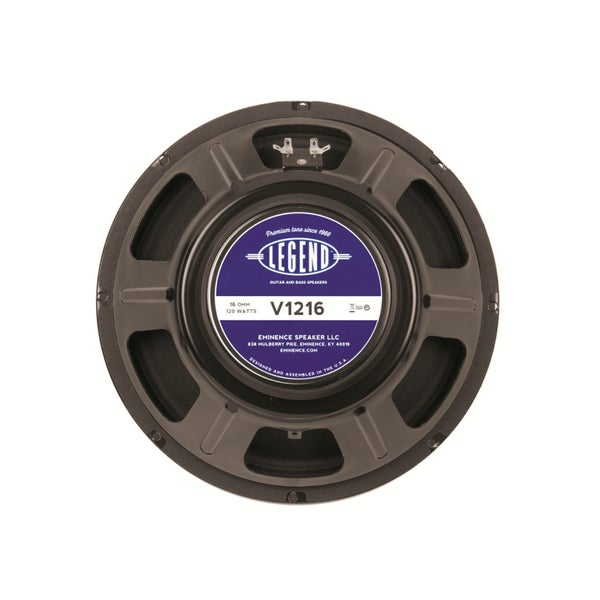

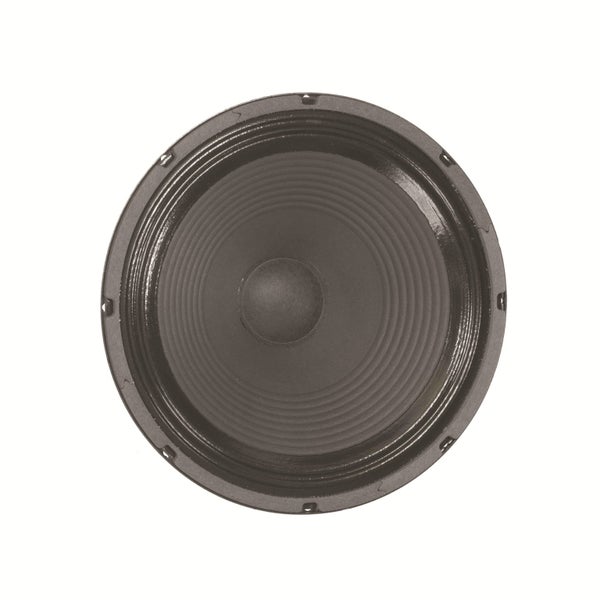

The Eminence Legend V1216 guitar speaker brings home classic tone from across the pond. Balanced, more mellow British sound with warm, smooth mids and highs and tight lows. Angus steak at hamburger prices.

SPECIFICATION

Nominal Basket Diameter

12", 305 mm

Nominal Impedance*

16 Ohm

Power Rating*

Program Power

N/A

Watts

120 W

Resonance

77 Hz

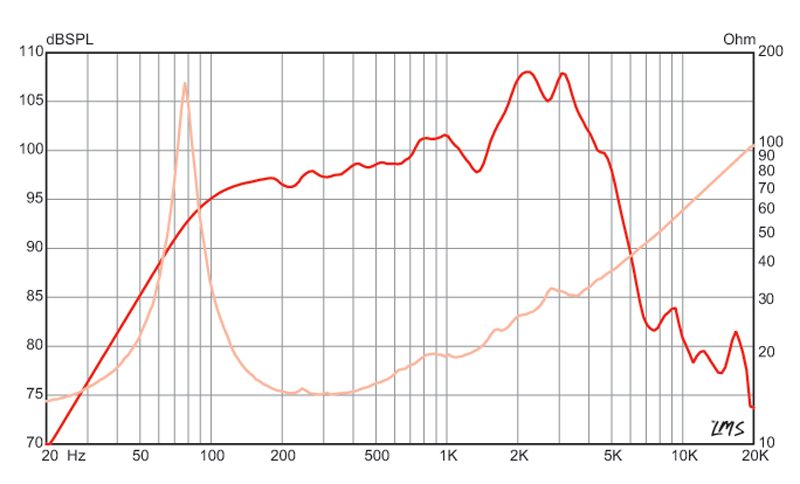

Usable Frequency Range

80 Hz - 5 kHz

Sensitivity*

100.9 dB

Magnet Weight

38 oz.

Gap Height

0.312", 7.9 mm

Voice Coil Diameter

1.75", 44 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs)

77 Hz

DC Resistance (Re)

13.18 Ohm

Coil Inductance (Le)

1.05m H

Mechanical Q (Qms)

9.86

Electromagnetic Q (Qes)

0.8

Total Q (Qts)

0.74

Compliance Equivalent Volume (Vas)

51.8 liters / 1.83 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

40.5 cc

Mechanical Compliance of Suspension (Cms)

0.14 mm/N

BL Product (BL)

15.4 T-M

Diaphragm Mass Inc. Airload (MMs)

30 grams

Efficiency Bandwidth Product (EBP)

96

Maximum Linear Excursion (Xmax)

0.8 mm

Surface Area of Cone (Sd)

506.7 cm2

Maximum Mechanical Limit (Xlim)

N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed

N/a

Vented

N/a

Driver Volume Displaced

0.071 cu.ft. / 2 liters

Overall Diameter

12.03", 305.6 mm

Baffle Hole Diameter

11.07", 281.2 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

N/A

Mounting Holes Diameter

0.25", 6.4mm

Mounting Holes B.C.D.

11.59", 294.4mm

Depth

5.1", 129.5 mm

Net Weight

8.1 lbs, 3.67 kg

Shipping Weight

10.1 lbs, 4.58 kgs

MATERIALS OF CONSTRUCTION

Coil Construction

Copper voice coil

Coil Former

Polyimide former

Magnet Composition

Ferrite magnet

Core Details

Non-...
