Description

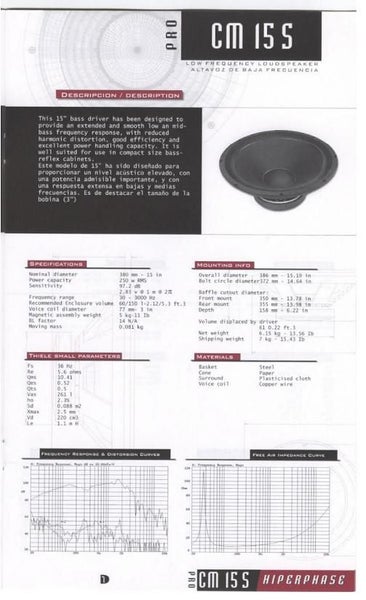

Beyma Speaker Model CM-15/S Normal price $495 Description / Informations Beyma CM15S This 15 inch bass driver has been designed to provide an extended and smooth low an mis-bass frequency response, with reduced harmonic distorsion, good efficiency and excellent power handling capacity. It is well suited for use in compact size bass-reflex cabinets.
Nominal diameter- 380 mm - 15 in
Power capacity- 300 w RMS
Sensitivity- 97.9 dB 2.83 v @ 1 m
Frequency range- 35 - 3000 Hz
Recommended Enclosure volume- 60/150 l-2.12/5.3 ft.3
Voice coil diameter- 77 mm-3 in
Magnetic assembly weight- 6.5kg-14.33Ib
Moving mass- 0.082 kg
Mounting infoOverall diameter 386 mm - 15.19 in Bolt circle diameter 372 mm - 14.646 in Baffle cutout diameter: Front mount 350 mm - 13.78 in Rear mount 355 mm - 13.98 in Depth 158 mm - 6.22 in Volume displaced by driver 6 l-0.22 ft.3 Net weight 7.3 kg - 16.1 Ib Shipping weight 8 kg - 17.63 Ib
Thiele small parametersFs 34 Hz Re 6.1 ohms Qms 9.91 Qes 0.39 Qts 0.37 Vas 285 l ho 2.9 % Sd 0.088 m2 Xmax 5 mm Vd 440 cm3 Le 1.2 mH
Materials Basket- Steel Cone- Paper Surround- Plasticised cloth Voice coil- Copper wire
This auction is for one new in box, and is the last I have
