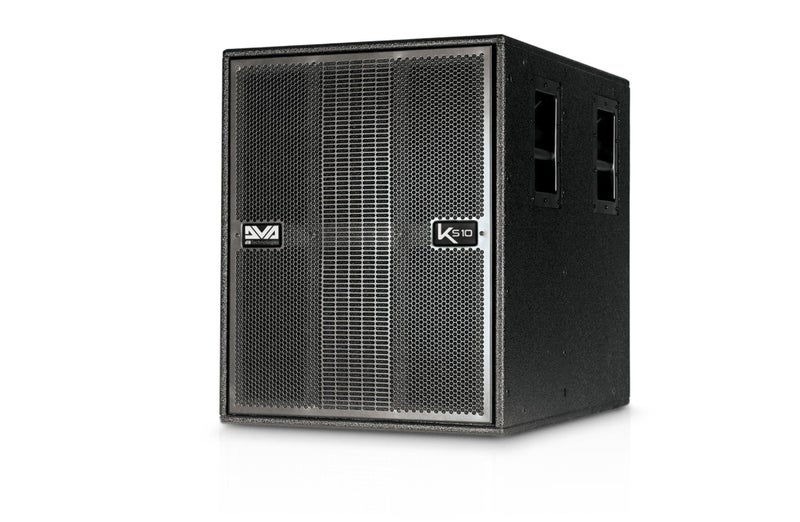

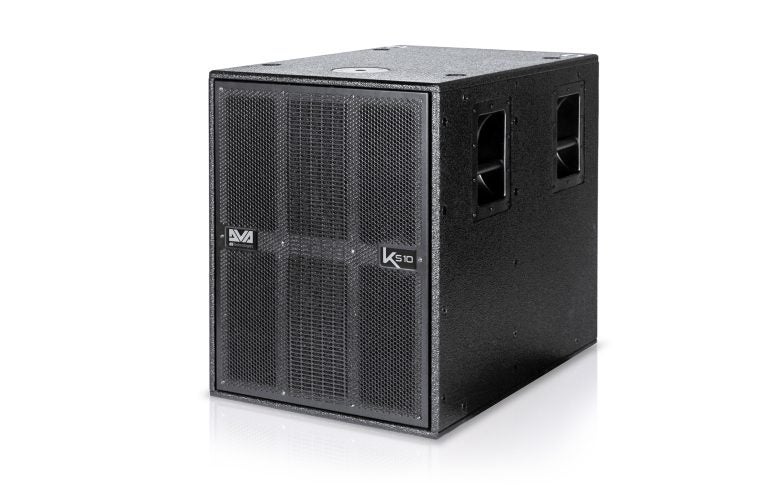

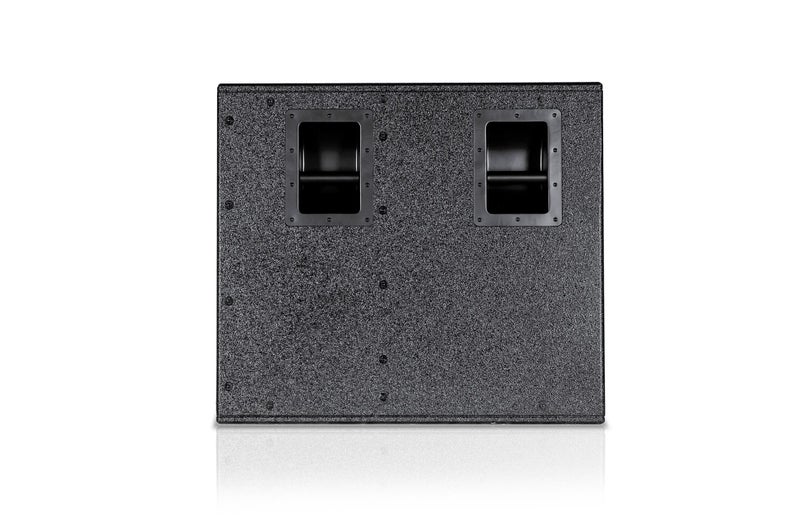

Overview Featuring a Class D 900W RMS Digipro G3 digital amplifier Description The semi horn loaded subwoofer DVA KS10 is equipped with a single 18" woofer driven by a Class-D Digipro@G3 power amp delivering 2000W Peak and reaching 134 dB SPL. Maximun versatility is granted by a stereo input/output balanced pre-amp. Crucially, KS10 can be used as a compact PA system (together with DVA K5 on a speaker pole) or groundstacked, but can also be flown thanks to the optionally available flyware. A dedicated encoder aloows to apply up to 4.5 ms of delay, with 0.5 ms speps. A switch allows to invert the phase by 180o as well as changing the LPF from 90 Hz to 120 Hz. Use it in a compact PA system, on a pole, groundstacked or flown in a DVA K5 array, this active sub is the most versatile low-end bin of the DVA series. Specifications Technical Data Speaker Type Active Semi-horn loaded Flyable Subwoofer Acoustical data Frequency Response [- 10 dB] 41 Hz - 120 Hz Max SPL 134 dB Directivity Omnidirectional LF 18 " Voice Coil LF 4 " Amplifier Amp Technology Digipro(R) G3 Amp Class Class D RMS Power 900 W Peak Power 1800 W Cooling Convection Power Supply 900 W SMPS with auto range PSU Processor Controller DSP 56 Bit AD/DA Converter 24 Bit / 48 KHz Limiter Dual Active Multiband RMS, Peak, Thermal Crossover Frequency LF-HF 90, 120 Hz (selectable) Slope LF-HF 24 dB/Octave Input Input Section 2X XLR Balanced Output Section 2x XLR Balanced Power Sockets 1 x Powercon In + 1 x Powercon Out Controls 1 x Input Sensitivity Rotary Switch 1 x DSP Rotary (up to 4.5 ms on-board) 1 x Polarity Inversion Switch (0o-180o) 1 x X-Over Frequency Switch (90 Hz, 120Hz) 1 x Output Mode Switch (Link - X-Over) Mechanics Housing Multiplex plywood Handles 2x Side Pole Mount 1x M20 on top Rigging Points 2xPick Points on top to fix DRK 10/20 rigging frames Width 515 mm (20.27 in) Height 640 mm (25.19 in) Depth 720 mm (28.34 in) Weight 43.4 kg (95.69 lbs) Notes: The data are not binding; dBTechnologies reserves the right to modify the data a...
