RAM-B-108-UN4 RAM(R) Finger-Grip(TM) Universal Mount with Strap Hose Clamp Base

Features

• Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends
• Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
• Saddle-shaped clamp mount ideal for rails ranging from 25-53mm in diameter
• Included medium length B size RAM(R) double socket arm uses ball and socket technology which allows for near-infinite adjustability
• Backed by a lifetime warranty

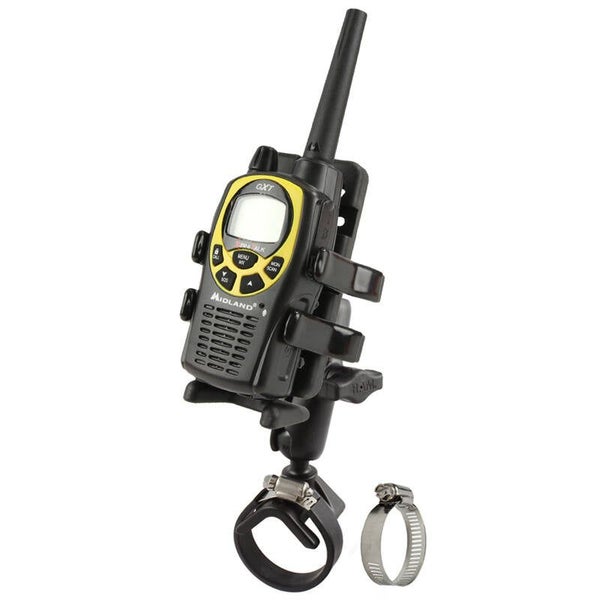

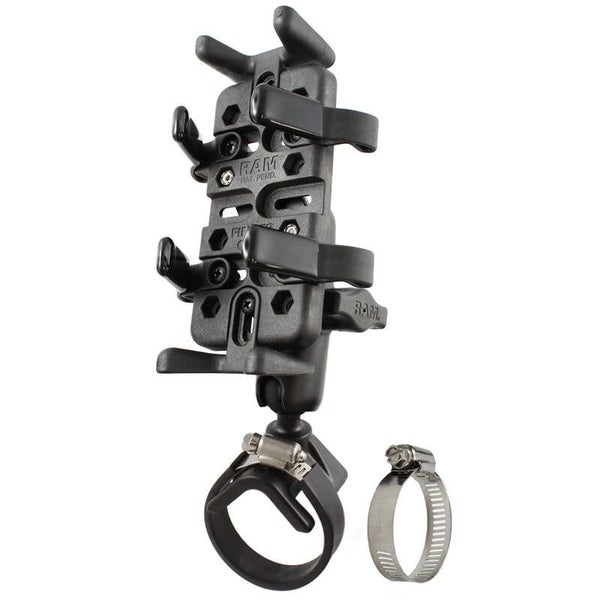

This consists of a hose strap base, STANDARD double socket arm and universal Finger Grip(TM) cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles.

The strap base consists of a 1" diameter rubber ball connected at a right angle to a V-shaped base. It fits rails from 25.4mm to 53.3mm diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. This is an alternative mounting base for Beechcraft airplanes with a "throw over yoke".

The -UN4 Composite Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices and comes with 3 sets of flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount.

For a list of compatible devices and complete dimensions see the RAM-HOL-UN4U

Height Dimensions: (The top and bottom plates can be removed for larger devices)

Min with Top and Bottom Plates: 133mm Max with Top and Bottom Plates: 152mm

Max Depth: 19mm - 40mm ...
