RAM-B-177U RAM(R) Glare Shield Clamp Mount with Diamond Plate - short arm

Features

• Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc.
• This product will attach to flat surfaces from 0 - 15.9mm thick
• Short RAM(R) arm with ball and socket system allows for almost infinite adjustment
• Diamond plate with 2 hole AMPs pattern will attach to many lighter RAM cradles
• Powder Coated Marine Grade Aluminium construction for maximum longevity

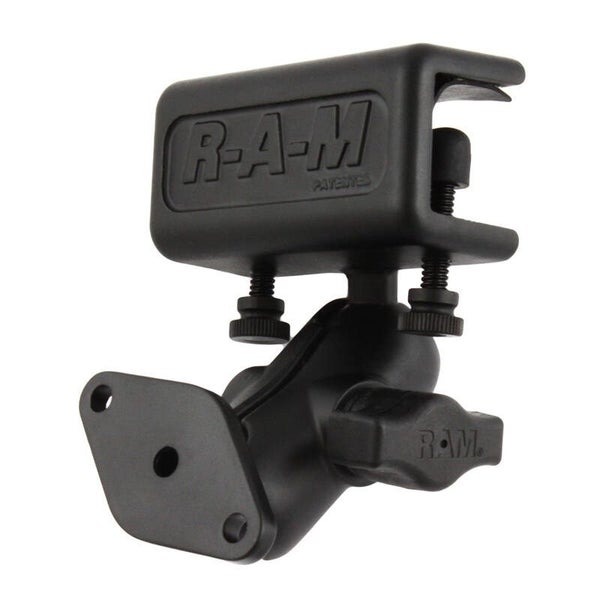

This consists of a glare shield clamp base, short double socket arm and diamond base adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 15.875mm (5/8") thick. Popular mounting edges include a car side window edge lip or glare shield on an aircraft.

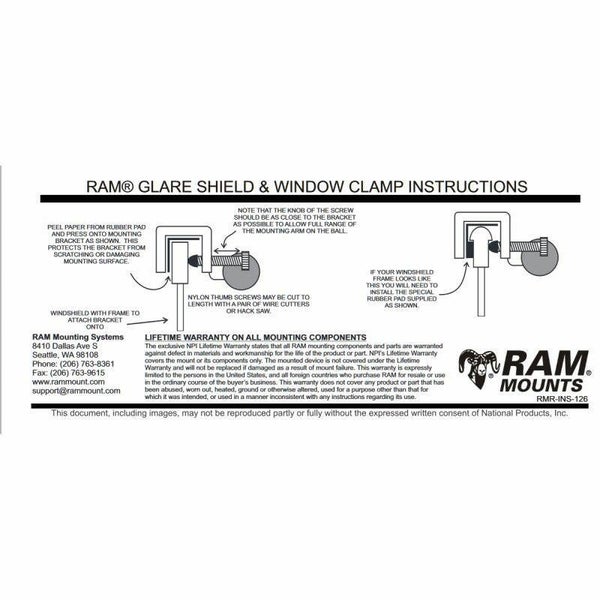

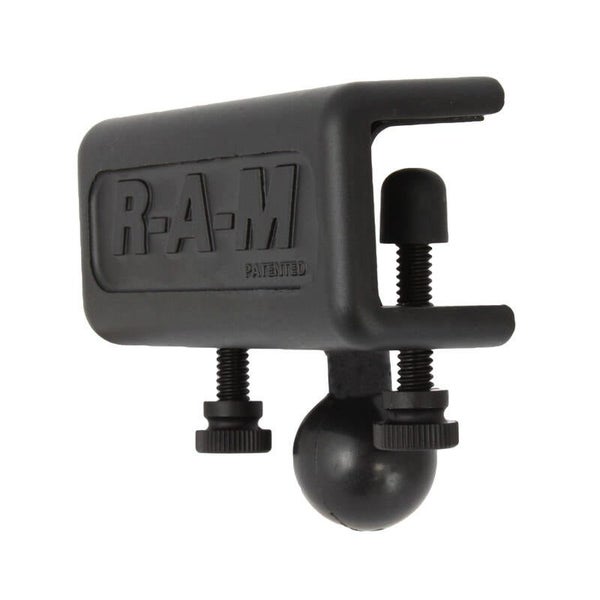

The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

Mount will attach to flat surfaces with thickness within the following range:

Clamp Range 0 - 15.875mm (0 to 0.625" (5/8)") max

Diamond Plate Hole pattern 2-Hole AMPS: 1.912" (48.5mm)

Arm Dimensions: Overall Length: 60.5mm (2.38") Socket-To-Socket Length: 51mm (2")

Material: Powder Coated Marine Grade Aluminium

Weight Capacity Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Ball Size: 1" Rubber Ball "B" Size

Components: RAM-B-259U - glareshield mount RAM-B-201U-A - short double socket mount RAM-B-238U - Diamond shaped base with 1" ball
