RAM-B-404-238U RAM(R) Tough-Claw(TM) Medium Clamp Mount with Diamond Plate (Alloy)

Features

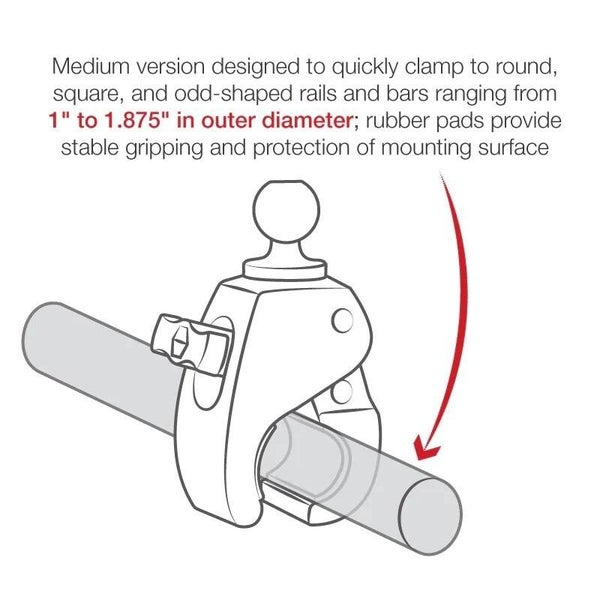

• Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-41mm in outer diameter
• Rubber pads provide stable gripping and protection of mounting surface
• Medium RAM(R) double socket arm
• Diamond plate with AMP's hole pattern mates to many RAM cradles for smaller devices
• Made of marine-grade aluminum, High Strength Composite and stainless-steel hardware for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

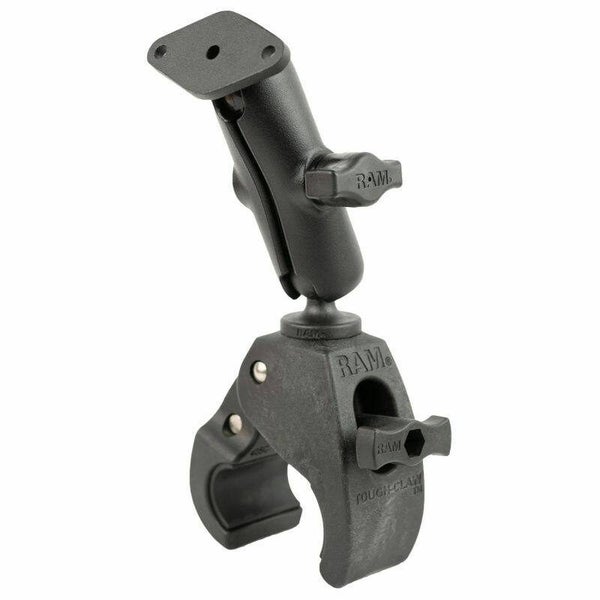

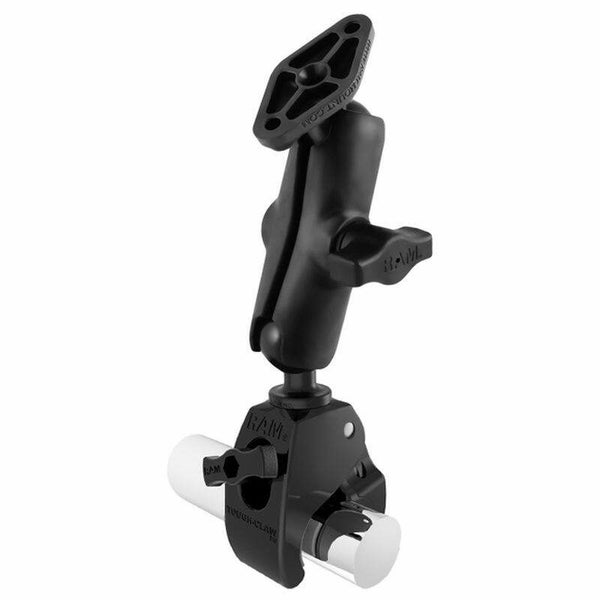

The RAM-B-404-238U consists of the medium Tough-Claw(TM) base, double socket arm and diamond base adaptor.

The RAM Tough-Claw(TM) is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw(TM) can be clamped on rails from 25 to 41mm outer diameter. The Tough-Claw(TM) is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

The diamond plate is a 1" diameter rubber ball connected to a 61.7mm x 33.3mm diamond base. The base has two holes 48.5mm from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

Clamping Range Rails/Tubes: 25.4 to 40.6mm (1" to 1.6") Flat Surfaces: 0 to 40.6mm (0" to 1.6")

Hole Pattern: 2-Hole AMPs: 1.912" (48.5mm)

Arm Dimensions: Overall Length: 94.7mm (3.73") Socket-To-Socket Length: 76.2mm (3.0")

Weight Capacity: Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Material: Marine-grade aluminium High Strength Composite

Ball Size: 25.4mm/1" Rubber Ball "B" Size

Weight

444 grams / 0.98 lbs

Components: RAP-B-404U - medium tough-claw RAM-B-201U - medi...
