RAM-B-102U RAM(R) Double Ball Diamond Plate Mount - medium arm

Features

• RAM universal drill down mount with 2 diamond plates
• Drill-down mounting solution, choose either diamond plate featuring the AMPS 2-hole pattern for attachment to lighter device holders
• Includes B size medium length double socket arm
• RAM ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

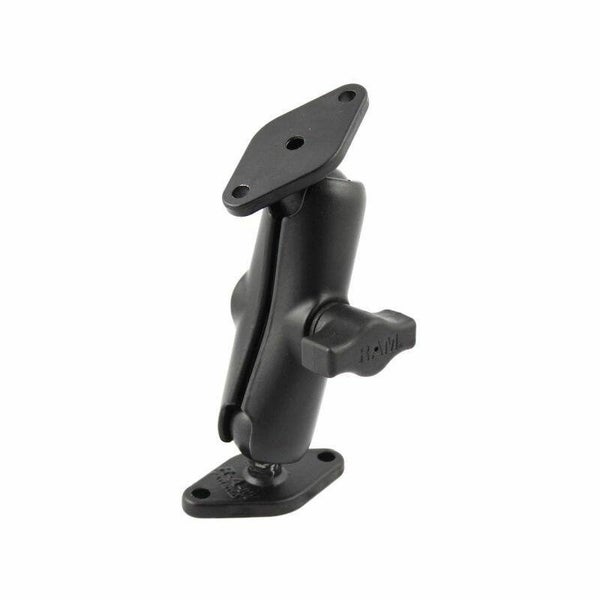

The RAM-B-102U consists of a standard double socket arm and two diamond bases.

The diamond bases contain two holes 48.6mm from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

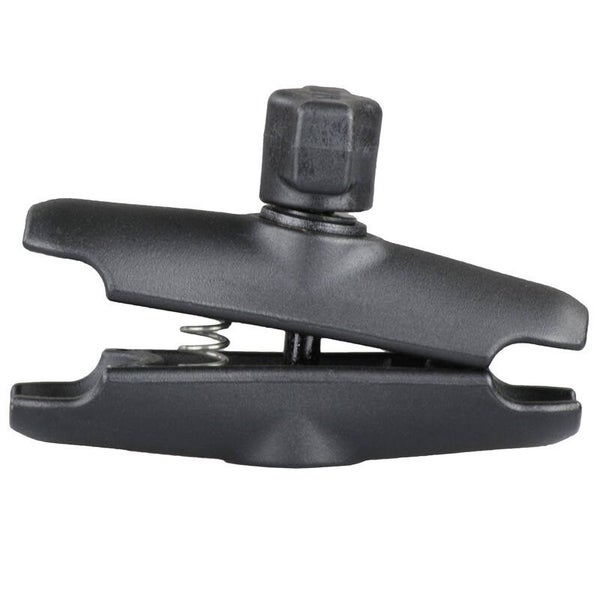

The double socket arm for B-Series 1" balls has a socket at both ends and is 94mm long overall. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection for almost infinite adjustment and perfect viewing angles.

Overall Height: 127mm (5")

Arm Dimensions: Overall Length: 94mm (3.69") Socket-To-Socket Length: 76mm (3")

Diamond Plate Hole Pattern 2-Hole AMPS: 48.6mm (1.912")

Diamond Plate Dimensions 61.7 x 33.3mm (2.43 x 1.31")

Ball/Socket Size B Size (1")

Weight 204 grams (0.45 lbs.)

Weight Capacity Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Materials Marine-grade aluminium

Components: RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL (x2) RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
