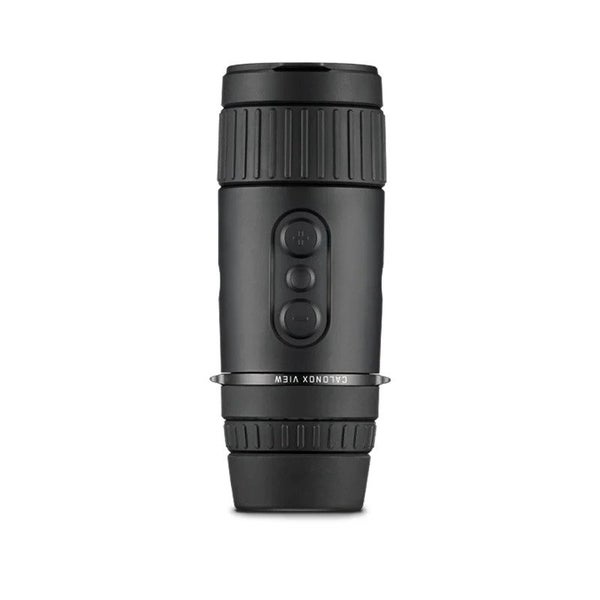

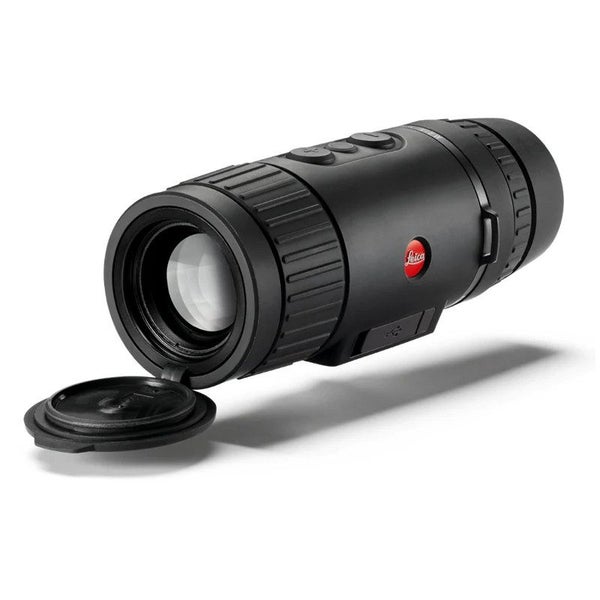

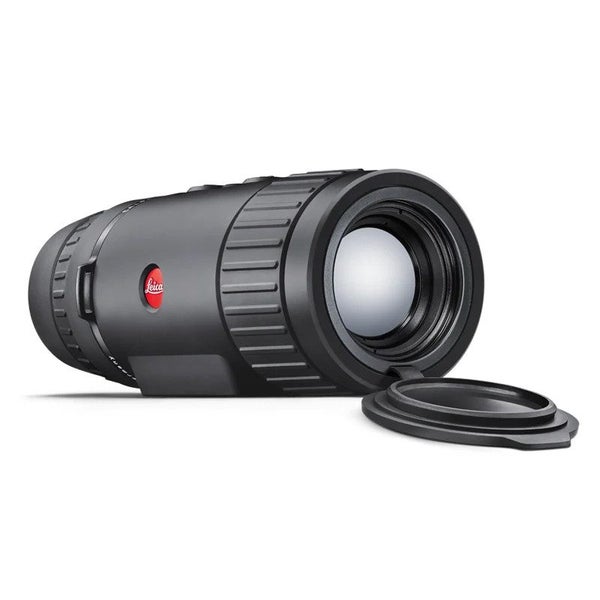

The Leica Calonox View Thermal (SKU: LS50502) is a high-performance thermal imaging device designed for various outdoor and tactical applications. Here are its detailed specifications:

Device Overview:

• Device Type: Thermal imaging device
• Type No.: 1970
• Order No.: 50 502
• Scope of Delivery: Calonox View, cordura case, charging cable, carry strap, quick start guide, lens cleaning cloth, certificate

Sensor and Imaging:

• Sensor Type: VOx (Vanadium Oxide)
• Sensor Size: 640 x 512 pixels
• Pixel Size: 12 um

Display:

• Screen Type: LCOS (Liquid Crystal on Silicon)
• Screen Diagonal: 0.4 inches
• Screen Resolution: 1280 x 960 pixels
• Image Repetition Frequency: 50 Hz

Optics:

• Lens Focal Length: 42 mm
• Optical Basic Magnification: 2.5x
• Digital Zoom: 1x/2x/3x/4x
• Field of View: 10.5 x 8.4o (18.3 m x 14.6 m/100 m)
• Diopter Adjustment: 5 dpt

Range and Resolution:

• Detection Range/Resolution: 3000 m/2 pixels (3281 yards/2 pixels)
• Recognition Range/Resolution: 1000 m/6 pixels (1094 yards/6 pixels)
• Identification Range/Resolution: 500 m/12 pixels (547 yards/12 pixels)

Video and Recording:

• Video Output: PAL
• Video Recording: Yes
• Video/Picture Resolution: 768 x 576 pixels
• Internal Memory: 16 GB

Connectivity:

• Cable Socket: USB-C
• Wireless Connection: Wi-Fi (2.4 GHz)

Environmental and Power:

• Protection Type: IPX4 (splash-proof)
• Operating Temperature: -10 to +50 oC (14oF to 122oF)
• Operating Temperature (Charge Battery): +10 to +30 oC (50oF to 86oF)
• Battery Life: Approx. 4 - 5 hours

Dimensions and Weight:

• Dimensions (WxH): 170 x 65 mm (6.7 x 2.6 inches)
• Weight (with Battery): 685 g (24.2 oz)

Additional Features:

• Tripod Thread: A 1/4 DIN 4503 (1/4"), M5 standard thread

Summary:

The Leica Calonox View thermal imaging device offers a robust set of features suitable ...
