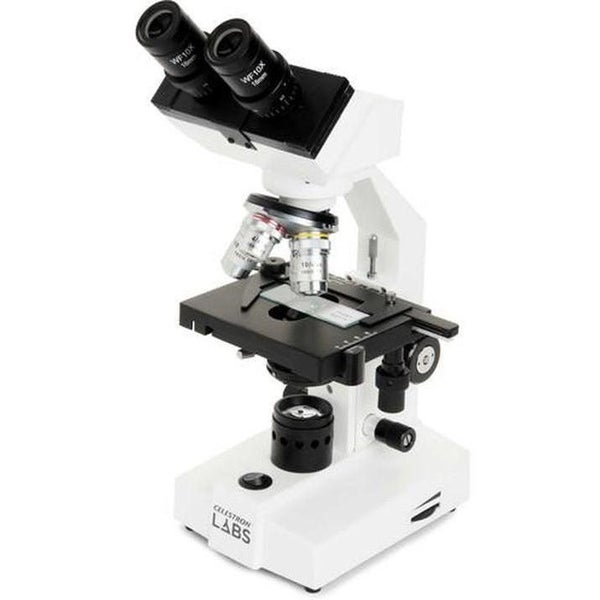

Celestron Lab's CB2000CF Compound Binocular Microscope is ideally suited for students and hobbyists with its comfortable binocular head design and broad magnification range Its four objective click stop turret holds the 4x 10x 40x and 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x

The 4-3 by 4-7 inch stage is articulated on the X and Y axes to place the exact area of interest precisely in the center An adjustable intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensure the perfect amount of light and beam spread to illuminate the specimen without washing it out Use the coarse and fine focus knobs and the right eye dioptric adjustment to bring all specimens into sharp clear focus

Optical System

Two 20x wide field eyepieces

Two 10x wide field eyepieces one with pointer

4x 10x 40x and 100x achromatic objectives

100x objective requires immersion oil for maximum resolution

Four position click stop turret

40x 100x 400x and 1000x magnification with 10x eyepieces

80x 200x 800x and 2000x magnification with 20x eyepieces

Lighting

1-25 NA Abbe condenser with three color filters

Removable blue yellow green filters

Lower halogen illumination adjustable intensity

Manual mechanical iris adjustment

Focusing

Separate coarse and fine focus knobs

Sliding interpupillary adjustment to fit a wide range of users

Right eye dioptric adjustment

Stage

4-3 by 4-7 inch mechanical rectangular stage

Adjustable width locking slide or specimen holder

Accepts 3 by 1 inch specimen slides

XY right handed stage adjustments

Integrated ruler on stage edge
