Limited Edition R/C Product

1/10 R/C Manta Ray (2018) Item No: 47367

Length: 395mm. Image shows painted and assembled kit.

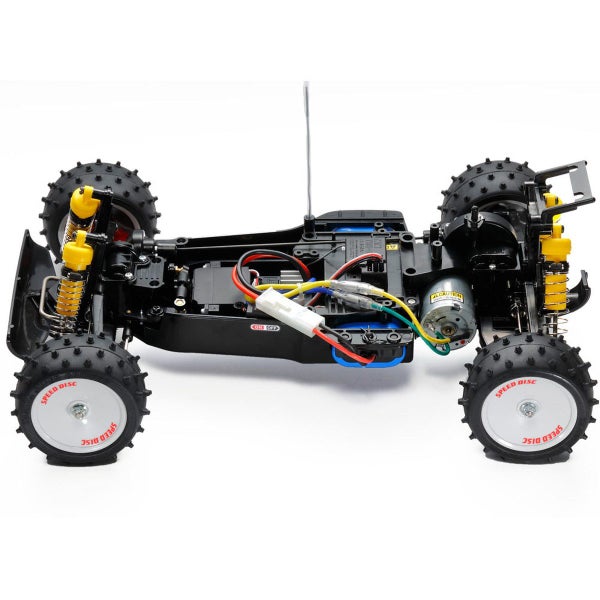

Hip Hip, Hoo-Ray! This re-release of the Manta Ray is certainly news to celebrate for fans of Tamiya vintage 4WD buggy models! The body - inspired by the watergoing ray of the natural world - is still a classic nearly 30 years on from its original release in 1990; it and the large rear wing are molded in lightweight and tough polycarbonate. Stylish dish type wheels are paired with spike tires for superlative grip on- or off-road. A Rugged 4WD Chassis This kit's 4WD chassis is based around a bathtub frame with honeycomb rib pattern for excellent rigidity, and which also facilitates a low center of gravity thanks to a low attachment position for the battery pack. Its 4-wheel independent double wishbone suspension employs CVA oil dampers, while lightweight and durable hollow lower arms feature a smooth design to discourage dirt from sticking to them. Differential gears are contained in sealed gearboxes, each with a quick-access maintenance hatch. The 3-piece steering tie-rod gives sharp response, and ball adjusters allow easy altering of toe angle. Specifications Length: 395mm, Width: 250mm, Height: 145mm Wheelbase: 270mm Weight (excluding R/C equipment and battery pack): 1,100g Tread: 207mm (Front & Rear) Bathtub-type Chassis Frame Shaft-Driven 4WD Front/Rear 3-Bevel Differentials 3-Piece Steering Tie-Rod 4-Wheel Double Wishbone Suspension Tire Width/Diameter: 40/84mm (Front & Rear) CVA Short Oil Shock Units Gear Ratio=8.59:1 (with kit-included 21T pinion gear) Type 540 Motor and Electronic Speed Controller are included Separately Required Items 2-Channel R/C Unit Battery Pack & Charger R6/AA/UM3 batteries for transmitter
