ANT-BH-WAL 698-2700Mhz Panel Antenna Blackhawk
Description

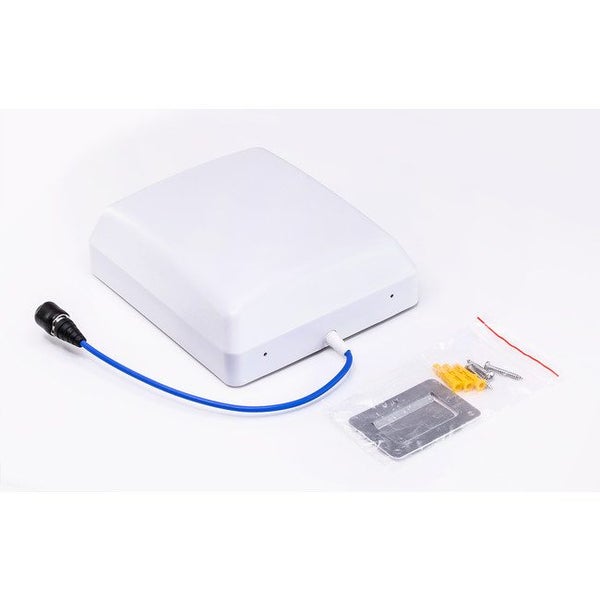

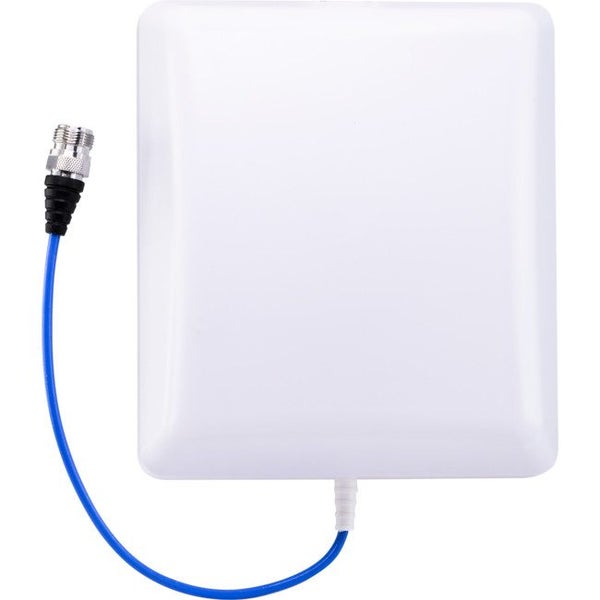

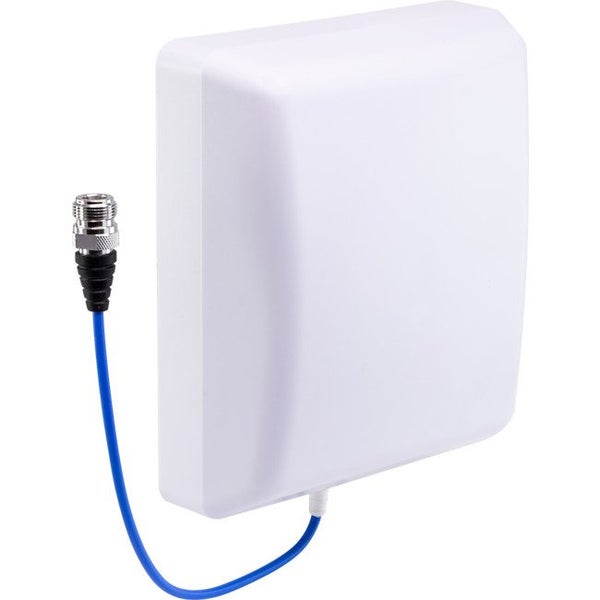

For a speedy processing of your order, please ensure you enter your phone number at checkout. Wall Panel Antenna. ANT-BH-WAL-698/2700-65 - BLACKHAWK INDOOR WALL MOUNT ANTENNA | Provides a 7dbi gain for 698-960 MHz | Provides a 8dbi gain for 1710-2600 MHz | The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of whatfrequency they operate on. | Offering a 7dB gain this antenna is suitable as an indoorantenna or panel antenna, that can be mounted on a wall for repeater applications. | Main Technical Specifications:
Model BH-WAL-698/2700-65
Frequency Range 698960 MHz / 17102600MHz
VSWR <1.5
Input Impedance 50
Gain 7 / 8dBi
Polarization type Line polarization
E-plane beamwidth 65°
H-plane beamwidth 90°
F/B Ratio =23dB
Max Power 50W
Lightning protection DC ground
Connector Type N Female
RG58/U cable L=300mm
Weight 600g
Dimensions 210mm×180mm×44mm
Radome material UV-Resistance ABS
Radome color White
Working temperature -40°C~+60°C
_
Weight: 0.464
