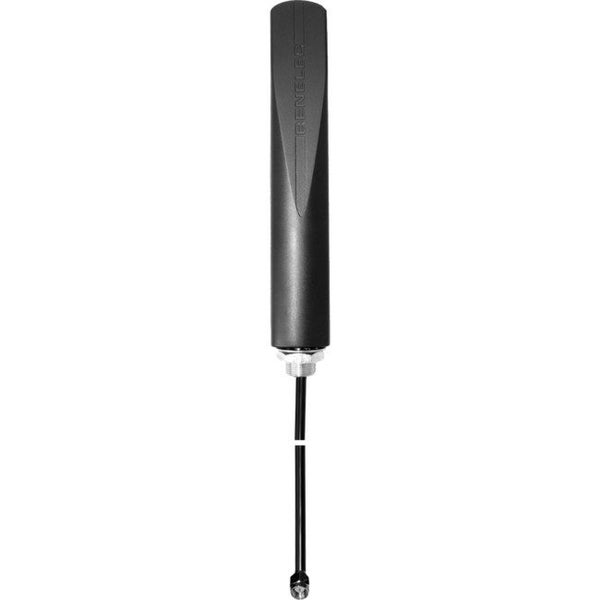

24584 5G Cellular Antenna 3M Cable With SMA Plug Benelec

For a speedy processing of your order, please ensure you enter your phone number at checkout. Multi band antenna suited for use in the bands 690-960 & 1710-2700MHz. 024584 5G CELLULAR MULTI BAND ANTENNA - BENELEC | The model 024584 is an economically priced, compact, unity gain all band antenna suited for use in the bands 690-960 & 1710-2700 MHz. It comes standard ? complete with 3.0 metres of low loss cable terminating in an SMA connector suited for mounting onto a wall bracket. This antenna can be used inside or outside, in mobile or fixed applications. The 024584 is decoupled from the feed cable and offers a clean radiation pattern at all frequencies. Applications: | Fixed and mobile solutions suited for use in the cellularbands 690-960 MHz & 1710-2700 MHz. Features: Cellular all band Economically priced Compact Can be used inside or outside Comes complete with 3M of low loss cable terminating in an SMA connector Reliable & Durable Specifications: | Frequency: @ 690-960 MHz, Tuned Bandwidth 270 MHz; 1710-2700 MHz Tuned Bandwidth 990 MHz. | VSWR: 2.2:1 max | Gain: 2.54dbi min | Impedance: 50 Ohm nom | Radiation Pattern: Omni directional | E Plane Beamwidth: 80 Deg | Length: 186mm | Weight: 120g | Termination: 3m Low loss Cable tail, SMA Male | Windloading @160 KPH: 1.85kg | _ | _ Weight: 0.196
