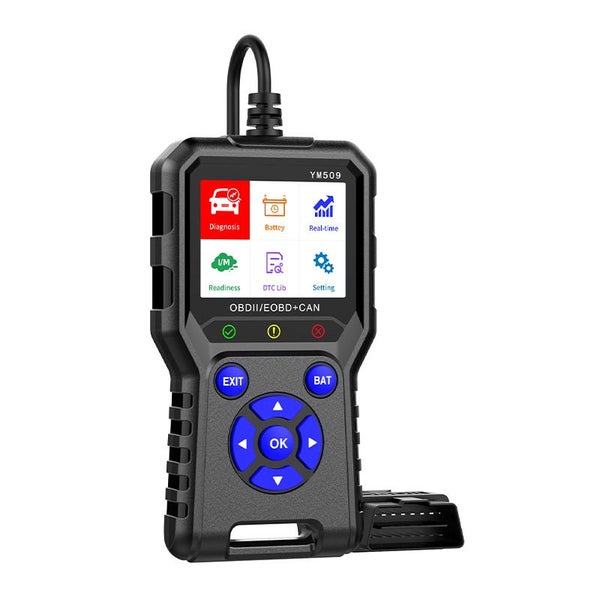

2024 NEW Car OBD2 Scanner Engine Code Reader Diagnostic Tool Erase Error Codes

Functions:

1. The buzzer volume is adjustable in ten segments, providing customizable sound levels.
2. The backlight brightness is also adjustable in ten segments, allowing users to set their preferred display luminosity.
3. The product features a screwless assembly design, enhancing its aesthetic appeal with a seamless look.
4. Silicone buttons are equipped with metal dome switches, improving tactile feedback for a better operational feel.
5. Three high-brightness indicator lights are included, ensuring clear visual signals under various conditions.
6. The product design incorporates hooks at the bottom, enabling users to conveniently hang it on a rack after use, promoting neat storage.

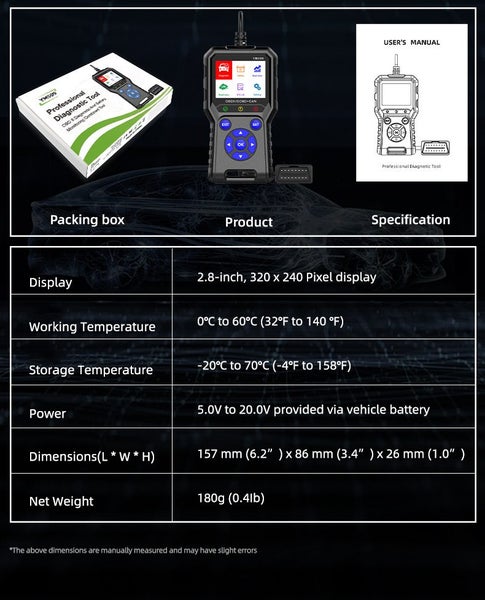

Specification:

1. Supports reading of car engine trouble codes via nine standard OBDII/EOBD protocols.
2. Enables clearing of engine trouble codes.
3. Provides freeze frame data for vehicle malfunctions.
4. Displays I/M (Inspection & Maintenance) readiness status.
5. Offers vehicle information retrieval.
6. Facilitates real-time data streaming from the vehicle.
7. Generates real-time data curves for vehicle diagnostics.
8. Performs Mode 6 tests (component/system tests).
9. Conducts Mode 8 tests (fuel evaporation emission leak system).
10. Executes oxygen sensor testing.
11. Provides trouble code lookup capabilities.

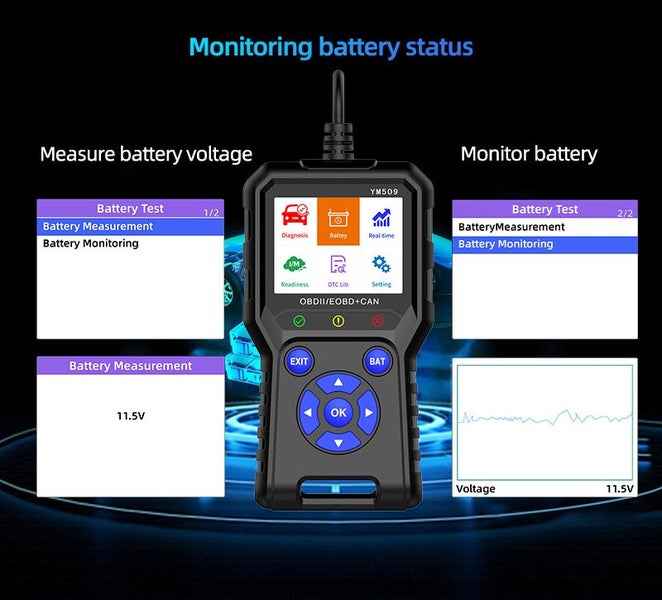

12. Reads vehicle battery voltage.
13. Monitors vehicle battery voltage in real-time.
14. Comes with 13 built-in languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German).

Support the Nine major Agreements:

1. SAEj1850 PWM (41.6Kbaud)
2. SAEj1850 VPW (10.4Kbaud) 3.IS09141-2(5 baud init,10.4Kbaud) 4.IS014230-4 KWP (5 baud init,10.4 Kbaud) 5.IS014230-4 KWP (fast init,10.4 Kbaud)
3. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7.IS015765-4 CAN(29bit ID,500 Kbaud) 8.IS015765-4 CAN(11bit ID,250 Kbaud) 9.IS015765-4 CAN(29bit ID,251 Kbaud)

Package Included:

1 x OBD2 Scanner

1 x English Manual
