Bearing Puller Separator Tool Set

Hydraulic Branch Removal Tool Three Jaw Multifunction Bearing Puller

Features:

• Professional Quality: This hydraulic puller set is designed for professional use, ensuring durability and reliability.
• Multi-function: Suitable for various tasks such as pulling hubs, gears, pulleys, races, bearings, and other engine or automotive components.
• Includes Hydraulic Ram: Comes with a powerful 10-ton hydraulic ram to facilitate pulling tasks and make the job easier.

Specifications:

• Pressure Of The Hydraulic Cylinder: 10 tons
• Bearing Separator: 20-105 mm (0.79-4.13 inches)
• Gear Puller Jaws: 100, 150, and 200 mm (4, 6, and 8 inches)
• Max. Peeling Width:
  • 100 mm Gear Puller Jaws: 240 mm (9.45 inches)
  • 150 mm Gear Puller Jaws: 280 mm (11.02 inches)
  • 200 mm Gear Puller Jaws: 300 mm (11.81 inches)
• Gross Weight: 18.7 kg (41.2 lb)
• Package Size:
  • Length: 54 cm (21.26 inches)
  • Width: 46 cm (18.11 inches)
  • Height: 14 cm (5.52 inches)

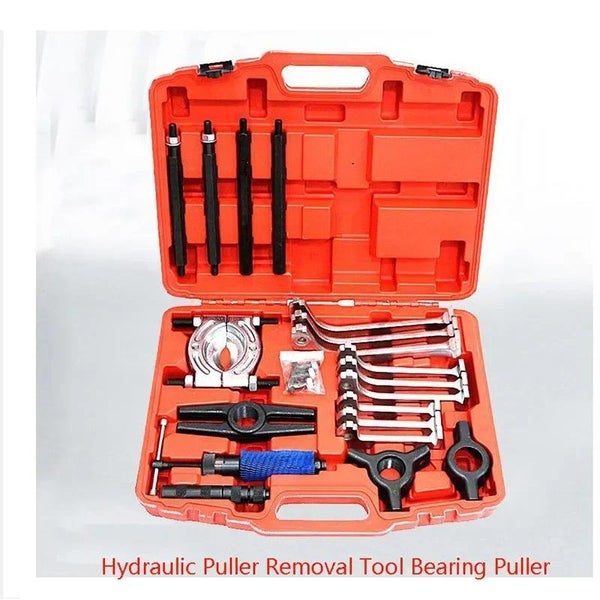

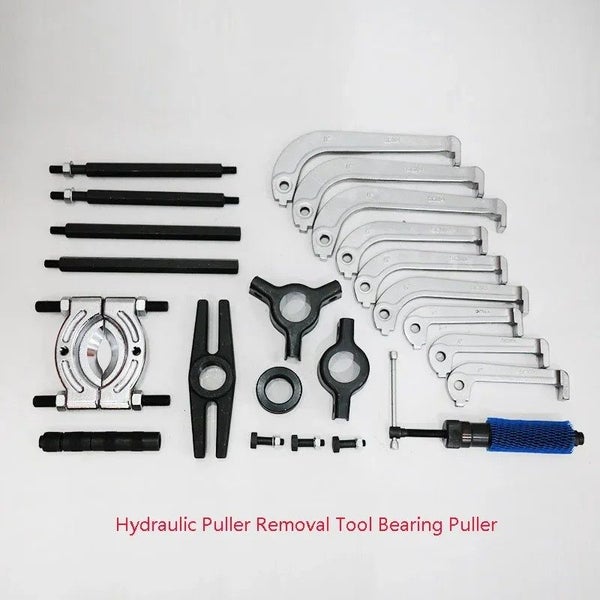

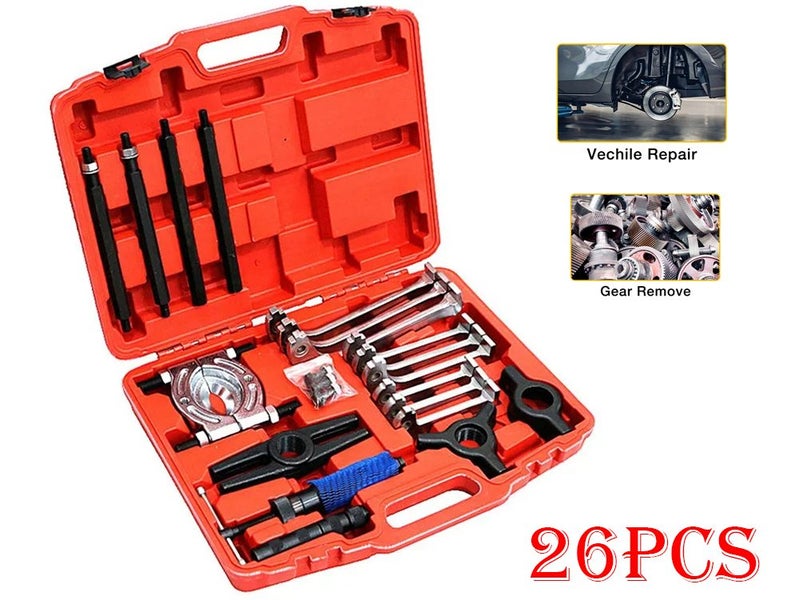

Package Contents:

• 1 x Hydraulic Ram
• 3 x 4 inch (100 mm) Gear Puller Legs/Jaws
• 3 x 6 inch (150 mm) Gear Puller Legs/Jaws
• 3 x 8 inch (200 mm) Gear Puller Legs/Jaws
• 1 x Twin Head Adapter
• 1 x Triple Head Adapter
• 1 x Bearing Separator
• 1 x Two-way Cross Beam
• 1 x Center Adapter
• 2 x Main Rods
• 2 x Extension Rods
• 1 x Bolt Kits
• 1 x Blow Molded Storage Case

All items are NZ stock only
