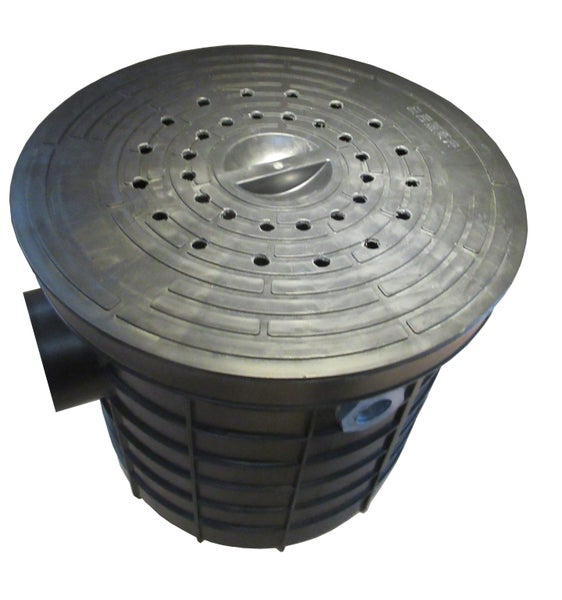

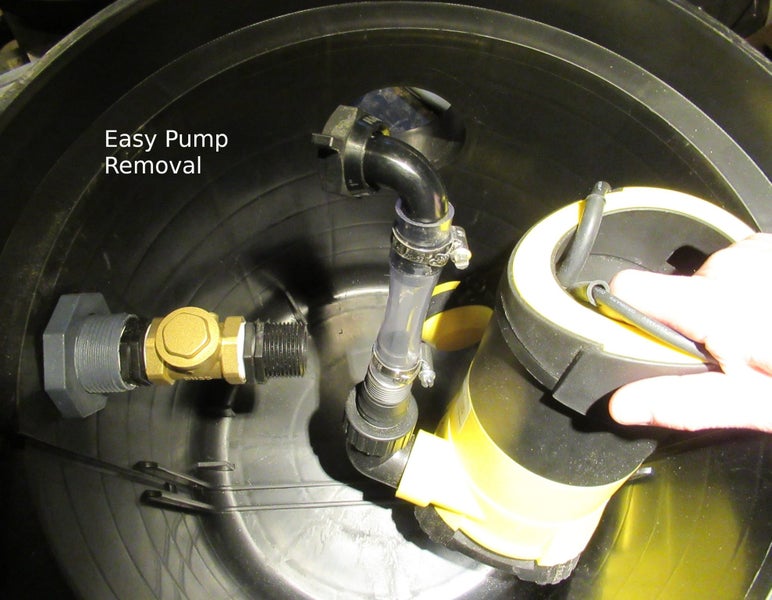

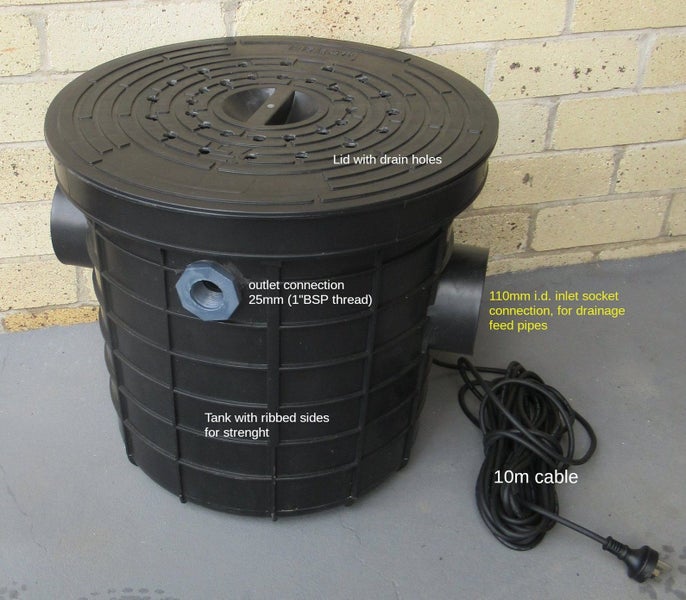

A floor sump unit featuring a 45L Polypropylene Tank with ribbed sides for added strength, plus the ribs will anchor the tank if it is partially concreted in place. The tank has a heavy duty polypropylene lid, which is strong enough to walk on, plus the lid is full size allowing easy access into the tank for service. The tank has 2x 110mm i.d. pipe sockets that will accept pipes from any in-ground drainage system. Installed in the tank is a Fully submersible type TPO1376 drainage pump with integral on/off float switch, a 350watt 230v single phase motor, with built in overload & auto-reset, and with 10m cable with std 3pin plug. Pump max head 7m, and max flow is 6000L/Hr. On the pump outlet is fitted a brass non-return valve, and pipe nut for easy removal/inspection. The non-return valve prevents back-flow when the pump stops. Tank outlet pipe connection is screwed 1"BSP, into which you can screw in a wide variety of fittings/pipe. An alternative solid lid can be supplied instead of the lid with drain holes.
As an optional extra we can supply side inlet socket to suit a 40mm DWV pipe, and vent pipe (for tanks with solid lid).
