Detect water leaks before they devastate your milk / farm / horticulture growing production and waste valuable water resources by installing flow meters into your water lines to show where your water is going.

Monitor water use, so that you can maximize your production and minimize your costs by installing these simple, low cost, battery operated, flow meters.
Why spend hours looking for a water leak, when with a few of these flow meters installed around your irrigation system, you can easily see which direction the water is being used or wasted, and how big the problem leak is.
Sensor can be mounted horizontally or vertically.
The display needs to be protected from water, but installation in a common plastic food container screwed to a fence post is ideal.

Choose the correct size to match your pipeline size, or use adapters (not recommended).
Check out our other listings for different sizes (3/4", 1", 1+1/4", 1+1/2", 2", 3")


Coupling Type: Male - Male BSPP Thread / Brass

Pipe Size: 3/4" (19 mm nominal metric size)


Function:

1. Simple DIY installation.

2. Low cost.

3. Display / Controller + flow sensor.

4. Battery Operated.

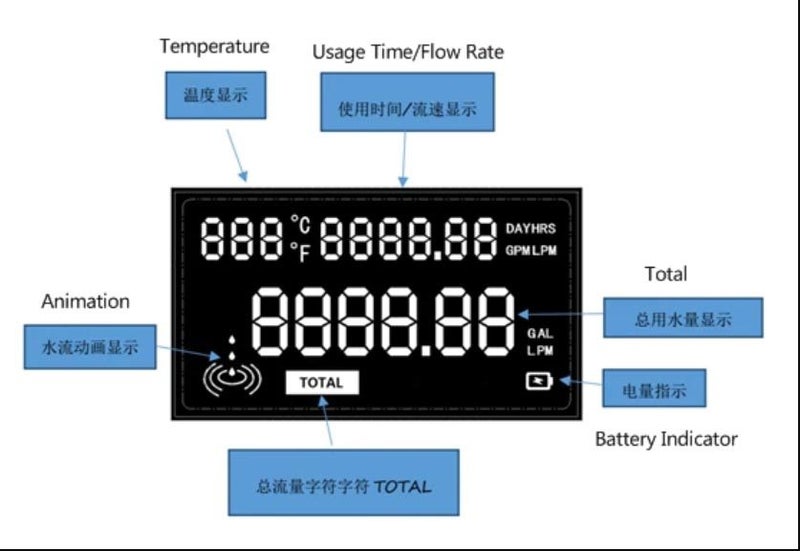

5. The digital display meter can display the instantaneous flow, unit is L/min (or gallons/min)

6. Can display total cumulative flow, unit is L, max is 9999L. Resettable with buttons.

7. Illuminated display.

8. Show working time (Days)



Specifications:


Dimension: 84*66*34mm

Installation Dimension: 40 wide x 60mm long

Power supply: 3 AAA battery (or 5VDC with power adapter accessory not supplied)

Flow range: 1 to 60 L/Min

Flow sensor working temperature: 0-60 celsius

Accuracy: +/-2%

Working Pressure: 0.05-0.8MPa


Be sure to observe the flow direction indicated by arrow!


Package Contents:

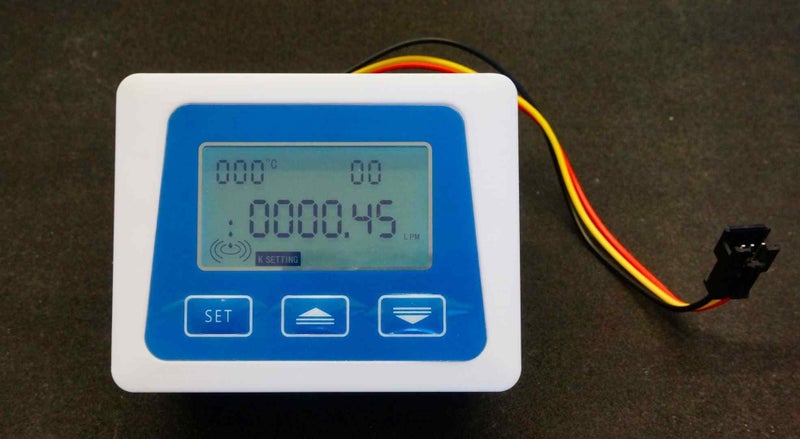

1x Digital display unit

1x 3/4" inch BSP hall effect water flow sensor - plastic
2x Display mounting brackets

(batteries not included)
2m or 5m or custom extension leads are available. Please click here to ask a question
