Description

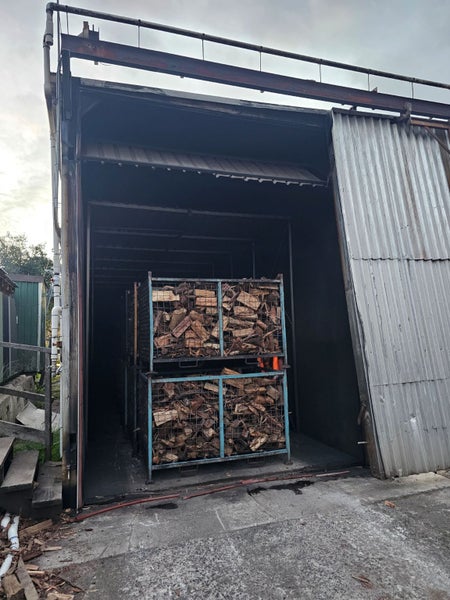

Operational high temp firewood kiln

Stainless steel insulated firewood kiln capable of drying over 250 cube per week, was running 6 days/nights per week. Can fit 12 IBC cages deep 2 high/2 wide - 48 cages x1.2m, 57m per charge. Currently doing 24 hour change overs on hotmix and gum (45 cube loads).

Specifications;

Operating temp 100 - 120 degrees
8kw 1.8m diameter fan

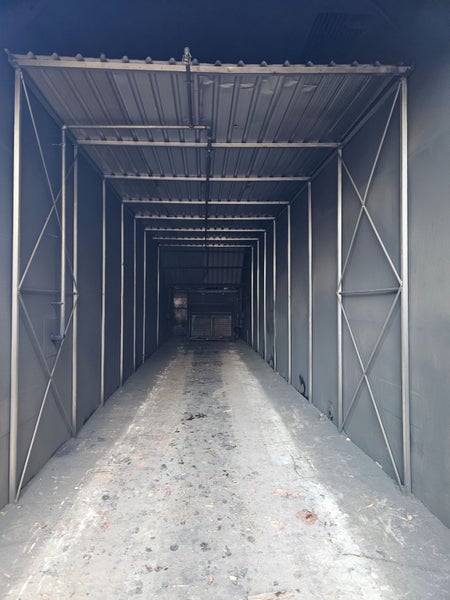

false aluminum/color steel ceiling

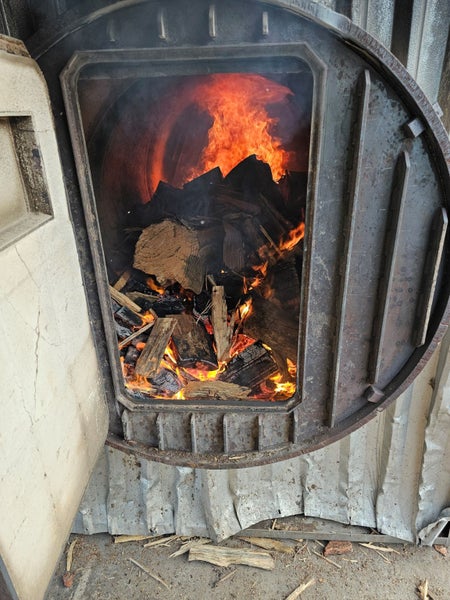

Large furnace burning waste wood, wet sawdust, wet logs, bark etc (manual in feed).
Furnace has a double door pivot where whole front door can swing off for loading.
x2 ash shoots under furnace for ash removal
Sprinkler system
Overtemp alarm (light and horn)
x3 temperature sensors and Humidity sensor fitted in a PLC, capable of off site monitoring.
x4 roof top vents
x2 side doors for cooling/venting and access
Dimensions. 17m long, 4.6m high, 3.7m wide. (external measurements)

Not included
