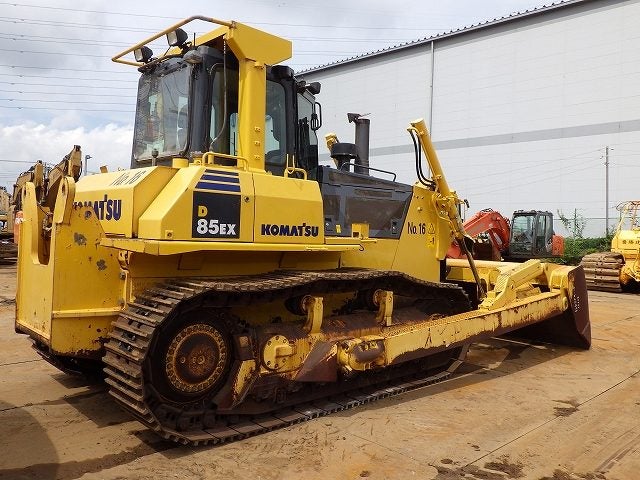

We removed these 82 shoes from the late model Komatsu D85EX ship dozer in photos which had worked only 367 hours.

They're here in our Brixton yard ready to dispatch immediately but because of the way trademe work we can't list them individually. If you want to buy less than the full set ask a question and I'll set up a separate auction or something.

They're not new but the parts that count are very good. The dozer had sat around in a marine environment since new in 2018 and so there's no shortage of surface rust, thought the mating surfaces were protected. We burned them off so some will have signs of that process no matter how careful the fitter was. They'll bolt up to your machine very well. We even have some new bolts and nuts left over.

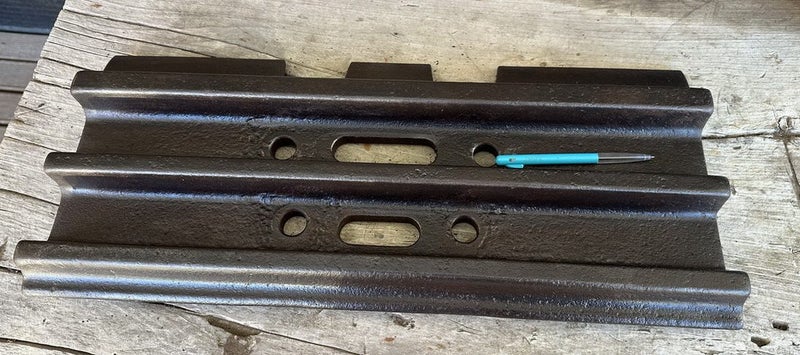

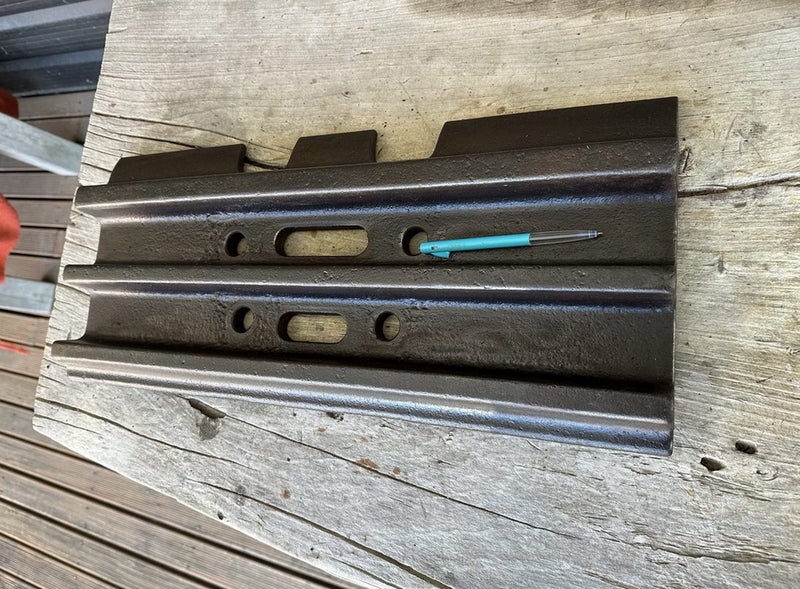

Its probable these will fit any similar gauge and weight (25-40 tonnes) Komatsu excavator or tracked machine, possibly other makes too, and to help find out I've included detailed measurements your fitters can check and compare. Dimensions are also on one of the photos.

Overall W560mm w x L250mm x H51mm

Wide spaced hole centres 185mm Narrow spaced hole centres 145mm Narrow row hole C to wide Row hole c = 75mm (Measured on the diagonal) mounting hole diameter 21.5mm Grouser bar thickness at tips 20mm, 20mm & 25mm Grouser bar height 33mm Weight 24.5kg

They might also be the best Hangi stones you'll ever use but might be a bit good for that.

GST included, invoice provided, we'll organise best price freight to your door. if needed or can pick up.
