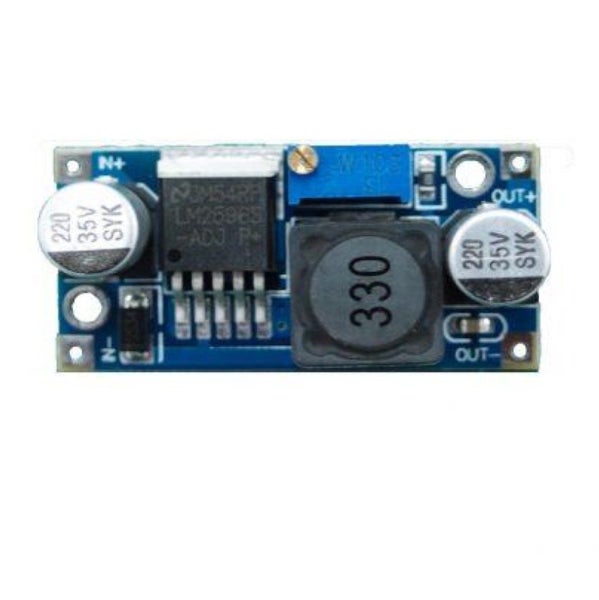

DC-DC Buck Converter Step Down Module Voltage Regualtor 1.5V-35V LM2596

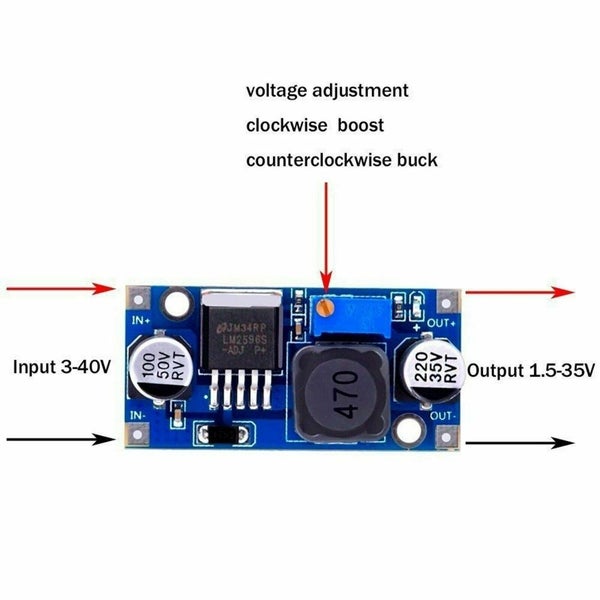

This module accepts any voltage from 4.535VDC and outputs any lower voltage from 334V. Output is adjusted via a multi-turn potentiometer With the step-down module, voltages can be easily and continuously reduced to the desired voltage. The DC-DC converter works extremely efficiently, the occurring energy loss is a maximum of 8%.

Due to the wide voltage ranges at the input and output of the converter, it can be used in many areas. The small dimensions enable space-saving installation in a large number of your projects.

Parameters: Input voltage: 3.2 V - 40 V DC Output voltage: 1.25V - 35V DC (adjustable) Output current: max. 3 A Conversion efficiency: 92 % Switching frequency: 150KHz Output ripple: 50mV 20M bandwidth Load Regulation: ±0.5 % Voltage regulation rate: ±2.5 % Operating temperature: -40 deg c to +85 deg c Dimensions: 43 x 21 x 14 mm

Whats Shipped: 1 x DC-DC Buck Converter
