We ordered this for a Perkins PKXL05 6 cylinder 5.9L engine we had powering a big shredder. By the time it arrived we'd repaired the old one so didn't need it.

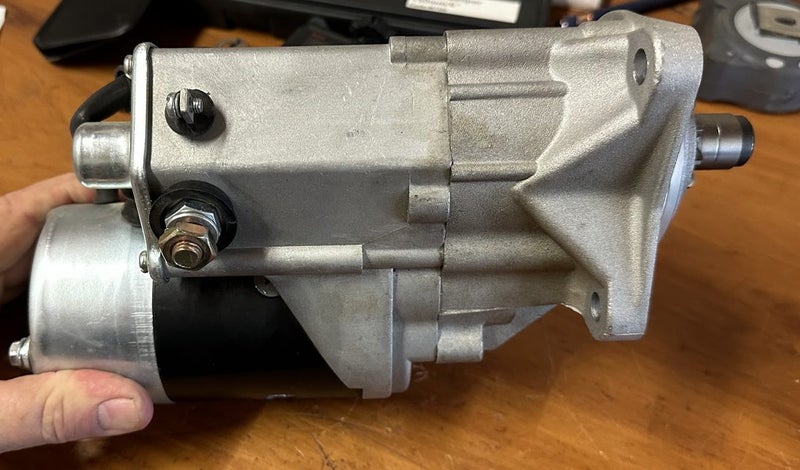

We think it was a high torque starter made to order and it has the hand written number 95003HD on the housing.

Its sat on a shelf in the store for probably 10 years and now its time to go while we still have some idea what it is. .

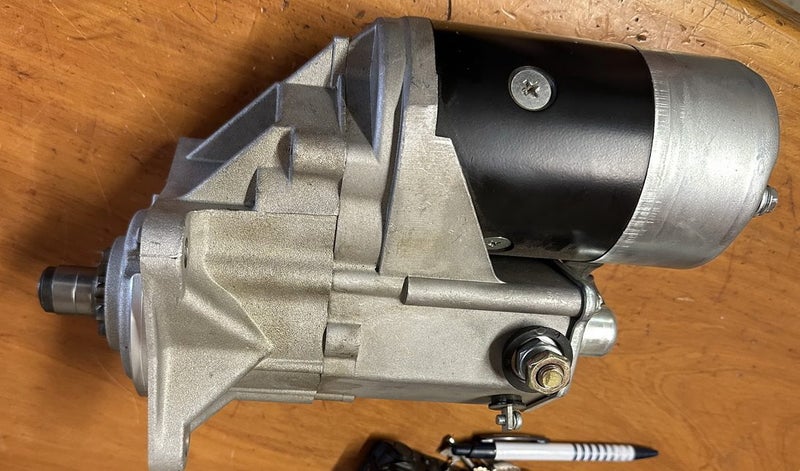

Here are some dimensions to help establish whether it'll fit your application:

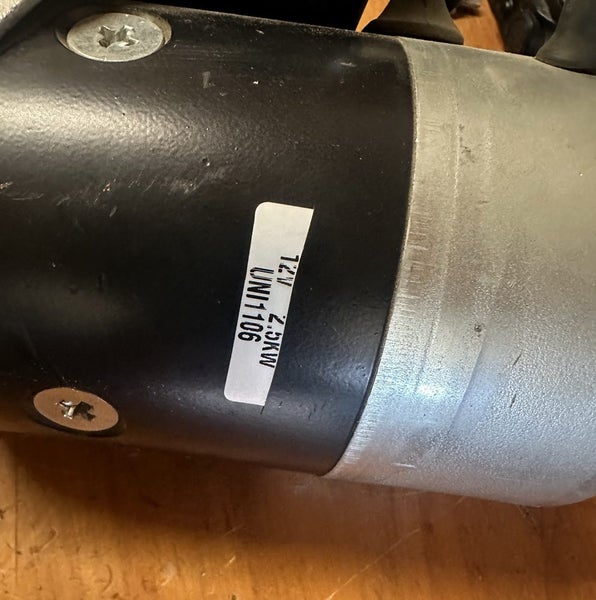

Overall length including pinion 290mm Length to mounting face 240mm Overall height of body 290mm Three mounting holes at 90mm centres & 11mm diameter Pinion diameter 40.3mm outside teeth Pinion throw 21mm Pinion teeth 10 - width at base 6.44mm Pinion protrusion from mounting face at rest 27mm 12 volt 2500 watt

This item meets the criteria as an imported machine (Imported, never used in New Zealand) and so qualifies for the Investment Boost scheme special 20% depreciation Tax rebate. We have the import documents of course to substantiate this.
