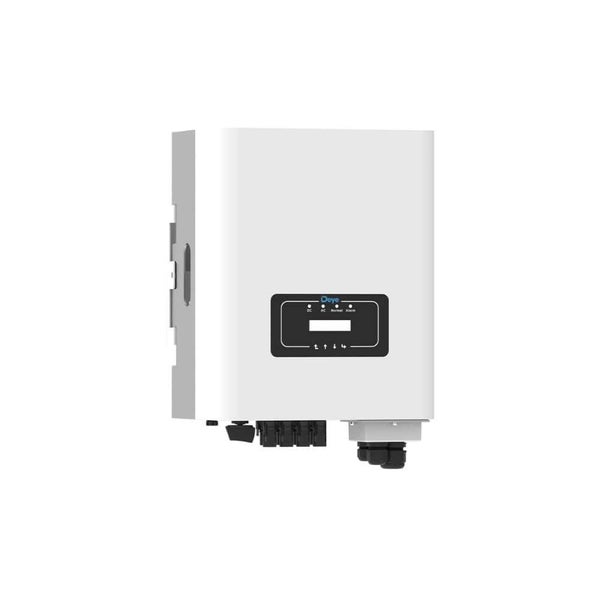

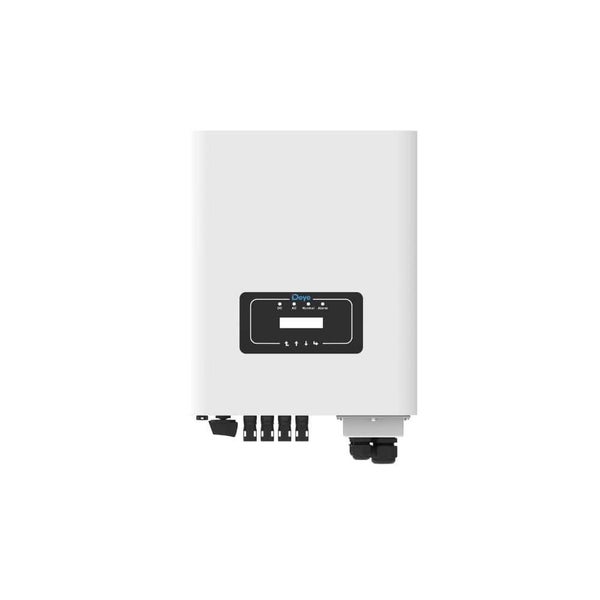

SUN-10K-G02P1-AU-AM2 | 10kW | Single Phase | 2 MPPT

2 MPP trackers, Max. efficiency up to 97.7% Zero export application, VSG application String intelligent monitoring (optional) Wide output voltage range Anti-PID function (Optional) Low start-up voltage of 80V

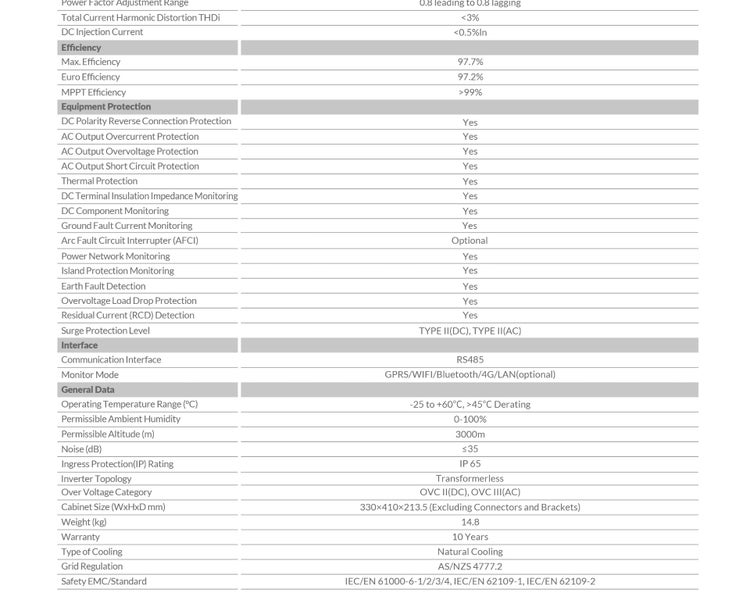

Technical Specifications:

Model: SUN-10K-G02P1-AU-AM2

PV String Input Data Max. PV Input Power (kW): 15 Max. PV Input Voltage (V): 550 Start-up Voltage (V): 80 MPPT Voltage Range (V): 70-500 Rated PV Input Voltage (V): 360 Max. Operating PV Input Current (A): 26+26 Max. Input Short Circuit Current (A): 39+39 No. of MPP Trackers/ No. of Strings MPP Tracker: 2/2+2

AC Output Side Rated AC Output Active Power (kW): 9.99 Max. AC Output Apparent Power (kVA): 9.99 Rated AC Output Current (A): 43.5 Max. AC Output Current (A): 43.5 Rated Output Voltage/Range (V): 230

Efficiency Max. Efficiency: 97.7% Euro Efficiency: 97.2% MPPT Efficiency: >99%

Equipment Protection DC Polarity Reverse Connection Protection AC Output Overcurrent Protection AC Output Overvoltage Protection AC Output Short Circuit Protection Thermal Protection DC Terminal Insulation Impedance Monitoring DC Component Monitoring Ground Fault Current Monitoring Power Network Monitoring Island Protection Monitoring Earth Fault Detection Overvoltage Load Drop Protection Residual Current (RCD) Detection Arc Fault Circuit Interrupter (AFCI): Optional

Interface Communication Interface: RS485 Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data Operating Temperature Range (°C): -25 to +60°C, >45°C Derating Cabinet Size (WxHxD mm): 330x410x213.5 (Excluding Connectors and Brackets) Weight (kg): 14.8 Warranty: 10 Years Grid Regulation: AS/NZS 4777.2 Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
