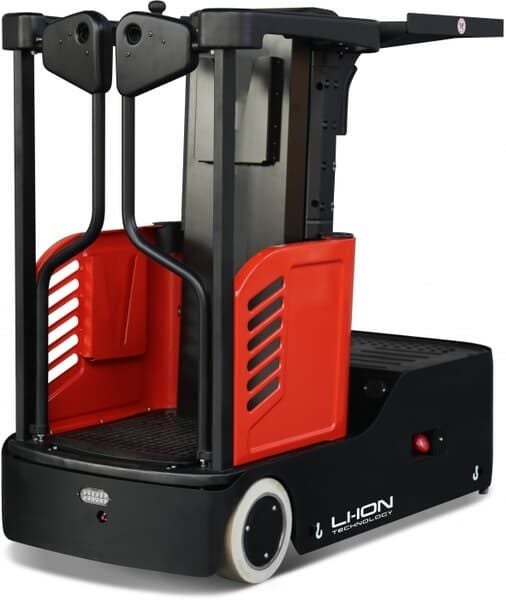

JX0 Mid Level Order Picker - Lithium Battery

The JX0 Order Picker is the ultimate work assist vehicle. It combines a 3-metre platform height with an ultra-stable mast, powered load tray and smooth electronic controls. The compact and maneuverable design is ideal for order-picking and stock replenishment in smaller warehouses and retail stores.

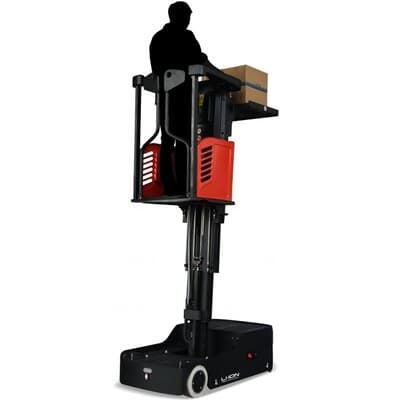

The JX0's unique power-operated load tray allows staff to pick up to 90kg of product without reaching or bending, providing a more comfortable experience at height.

A travel speed of up to 6km/h allows rapid transit down longer aisles, while a forward blue pointer alerts pedestrians, and smart EPS enforces speed restraint when lifting or turning.

Powered by a maintenance free battery, all JX0 models feature an integrated Battery Management System (BMS) for smart charge/discharge management and extended battery life.

With smart operator-focused features and a 4-5 metre pick height, the JX0 delivers a huge increase in picking efficiency while reducing injuries.

Unique differentiators of this unit over others in the market are the lithium battery, power steering for straight travel in both forward and reverse, and no castor wheels on the front end means they don't spin outside of the chassis of the truck through movements.

• 3000mm platform height (4-5m pick height)
• 220kg capacity (130kg operator + 90kg load tray)
• Dimensions 1440L x 750W x 1365H (mast lowered)
• Service weight ~800kg
• Lithium battery
• Onboard charger
• Electromagnetic braking
• 24 months warranty
