Vector Approved Inverter DEYE New Zealand Distributor - Micromall Solar 10-Year Warranty

SUN-20K-SG01HP3-AU-AM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported Higher yields / Safe & Reliable / Smart / User-friendly

100% unbalanced output, each phase AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 50A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator

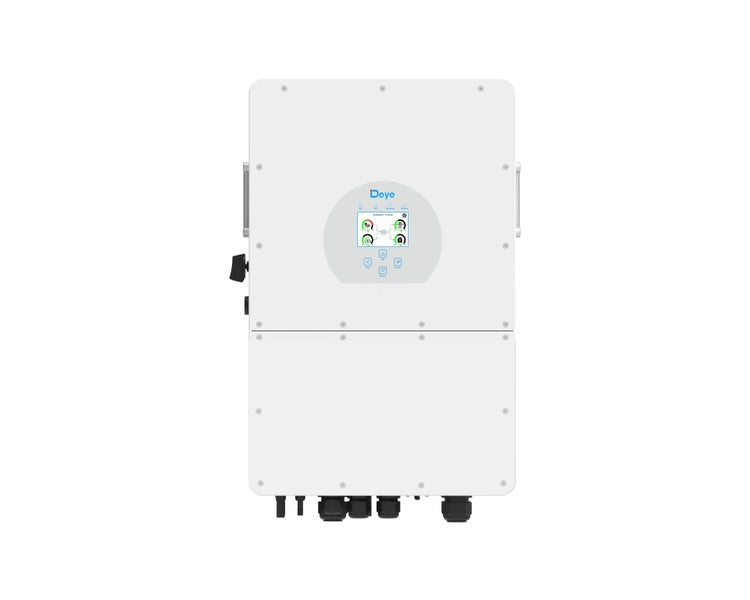

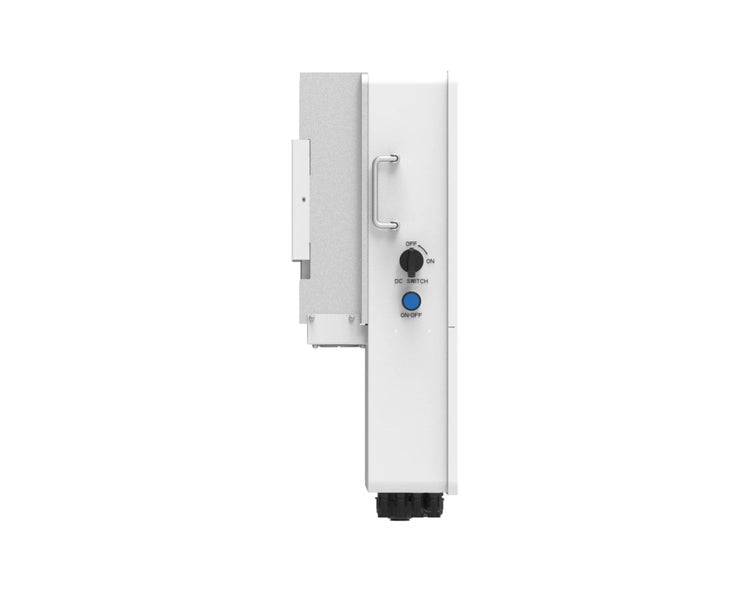

Model: SUN-20K-SG01HP3-AU-AM2

Battery Input Data Battery Type: Lithium-ion Battery Voltage Range (V): 160-700 Max. Charging Current (A): 37 Max. Discharging Current (A): 37 Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1

PV String Input Data Max. DC Input Power (W): 30000 Max. PV Input Voltage (V): 1000 Start-up Voltage (V): 180 MPPT Voltage Range (V): 150-850 Rated DC Input Voltage(V): 600 Max. Operating PV Input Current (A): 26+26 Max. Input Short-Circuit Current (A): 39+39 No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2

AC Output Data Rated AC Output Active Power (W): 20000 Max AC Output Active Power (W): 20000 AC Output Rated Current (A): 29 Max. AC Output Current (A): 29 Max. Continuous AC Passthrough (grid to load) (A): 80 Peak Power (off grid): 1.5 times of rated power, 10s

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: >99%

General Data Weight (kg): 30.5 Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets) Protection Degree: IP65
