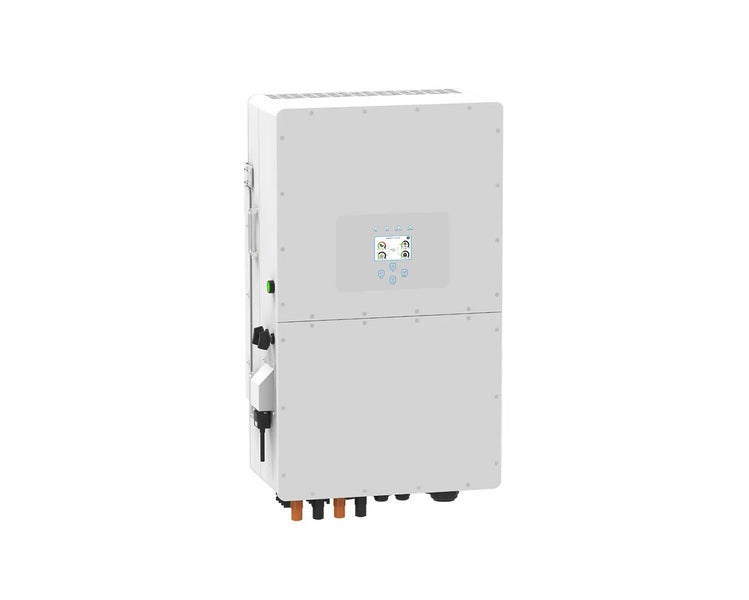

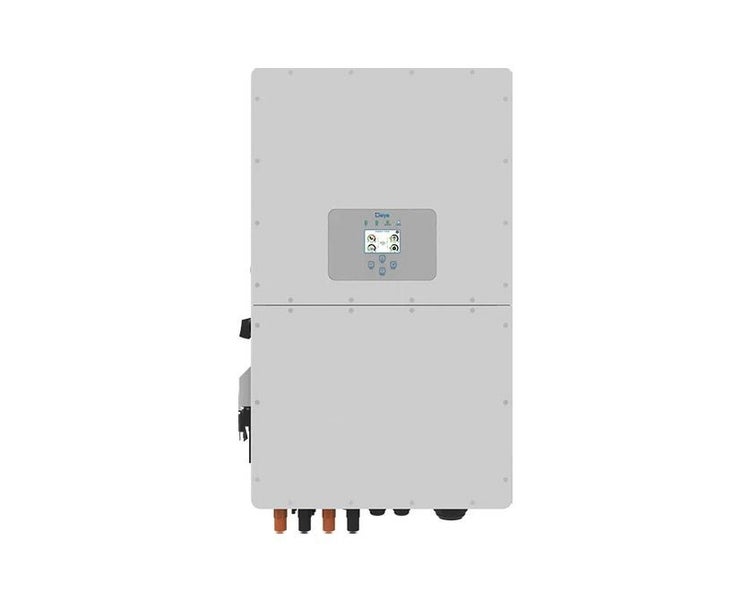

SUN-29.9K-SG01HP3-AU-BM3 | 29.9kW | Three Phase | 2 MPPT | Hybrid Inverter Higher yields / Safe & Reliable / Smart / User-friendly

100% unbalanced output, each phase High voltage battery, higher efficiency AC couple to retrofit existing solar system Max. charging/discharging current of 100A Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model: SUN-29.9K-SG01HP3-AU-BM3

Battery Input Data Battery Type: Lithium-ion Battery Voltage Range (V): 160-800 Max. Charging Current (A): 50+50 Max. Discharging Current (A): 50+50 Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 2

PV String Input Data Max. DC Input Power (W): 44850 Max. PV Input Voltage (V): 1000 Start-up Voltage (V): 180 MPPT Range (V): 150-850 Rated PV Input Voltage (V): 600 PV Input Current (A): 36+36+36 No.of MPP Trackers: 3 No.of Strings per MPP Tracker: 2+2+2

AC Output Data Rated AC Output and UPS Power (W): 29900 Rated Apparent Output Power (VA): 29900 AC Output Rated Current (A): 43.4 Max. AC Output Current (A): 43.4 Max. Continuous AC Passthrough (A): 200 Peak Power (Off Grid): 1.5 time of rated power, 10 S

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: >99%

General Data Weight (kg): 80 Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets) Protection Degree: IP65
