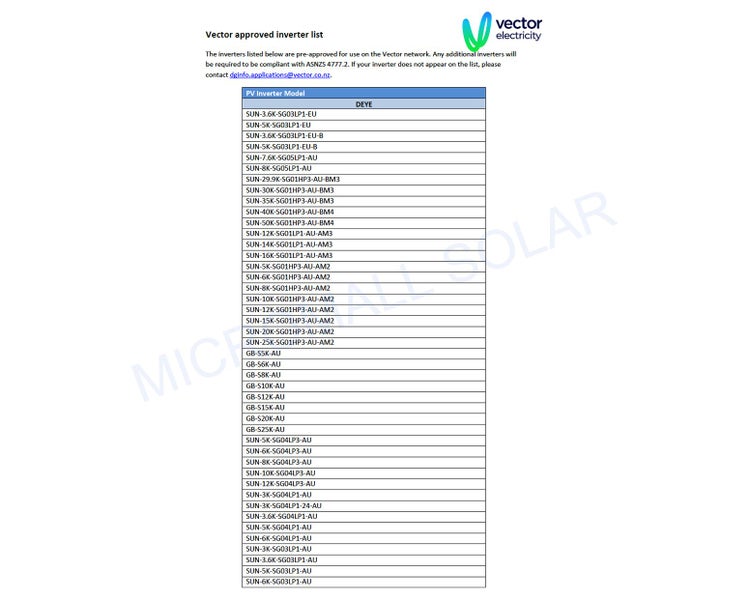

Vector Approved Inverter DEYE New Zealand Distributor - Micromall Solar 10-Year Warranty

SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported Higher yields / Safe & Reliable / Smart / User-friendly

Remotely shutdown function Smart Monitoring Platform Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

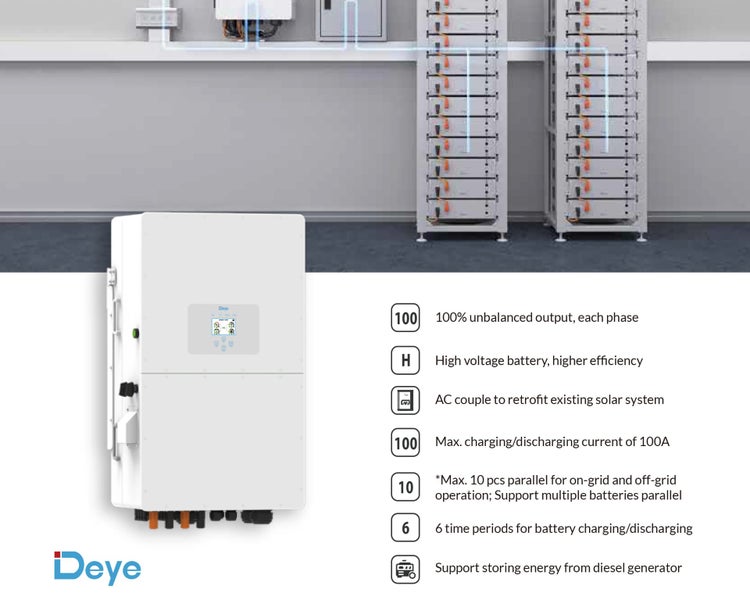

100% unbalanced output;each phase AC couple to retrofifit existing solar system *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 100A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator

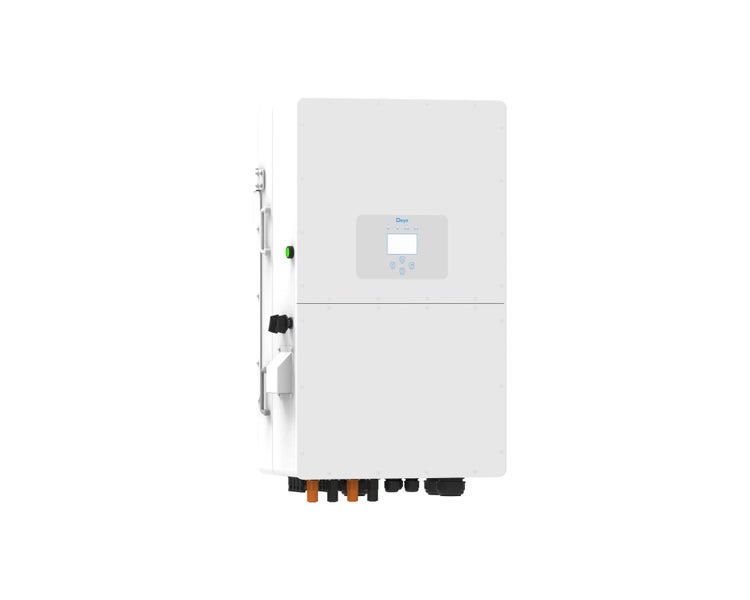

Model: SUN-50K-SG01HP3-AU-BM4

Battery Input Data Battery Type: Lithium-ion Battery Voltage Range (V): 160-800 Max. Charging Current (A): 50+50 Max. Discharging Current (A): 50+50 Charging Strategy for Li-ion Battery: Self-adaption to BMS Number of Battery Input: 2

PV String Input Data Max. PV Input Power (W): 75000 Max. PV Input Voltage (V): 1000 Start-up Voltage (V): 180 MPPT Voltage Range (V): 150-850 Rated PV Input Voltage (V): 600 Max. Operating PV Input Current (A): 36+36+36+36 Max. Input Short-Circuit Current (A): 55+55+55+55 No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2

AC Input/Output Data Rated AC Input/Output Active Power (W): 50000 Max. AC Input/Output Apparent Power (VA): 50000 Rated AC Input/Output Current (A): 72.5 Max. AC Input/Output Current (A): 72.5 Max. Continuous AC Passthrough (grid to load) (A): 200 Peak Power (off-grid) (W): 1.5 times of rated power, 10s

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: >99%

General Data Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets) Weight (kg): 80
