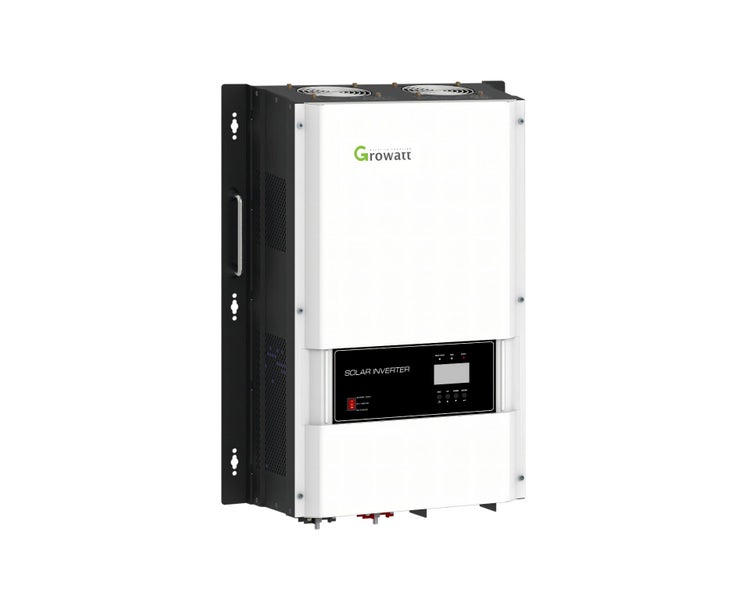

Introducing the Growatt SPF 10KT HVM Off-Grid Storage Inverter - New Arrival!

Key Features:

Dual MPPT solar charge controller Remote monitoring via WIFI/GPRS Industrial frequency design Smart function and parameter settings through LCD buttons

Warranty and Support:

Enjoy peace of mind with a 2-year warranty Local company support services available

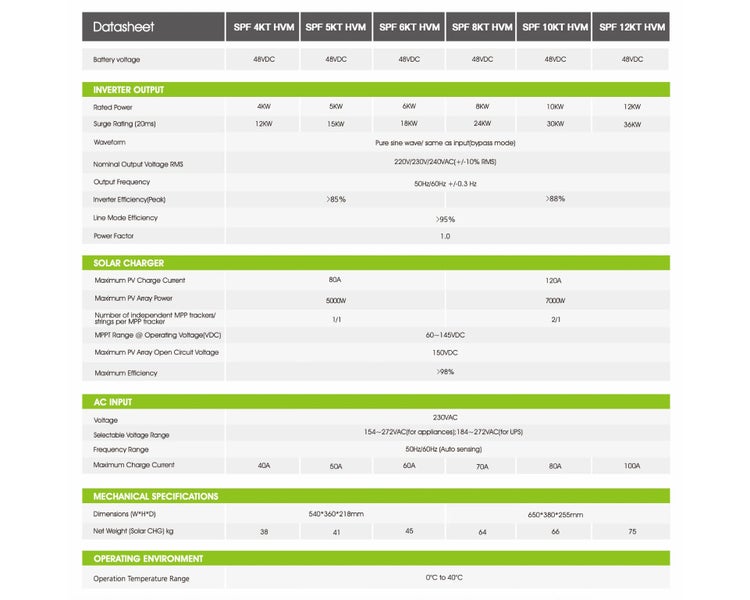

Specifications for SPF 10KT HVM:

Battery Parameters:

Battery Voltage: 48VDC Battery Type: Lithium/Lead-acid

Inverter Output:

Rated Power: 10KW Surge Rating: 30KW Waveform: Pure Sine Wave Output Voltage: 220/230/240VAC Output Frequency: 50/60HZ Inverter Efficiency: >88% Line Mode Efficiency: >95% Power Factor: 1.0 Transfer Time: 10ms typical, 20ms max

Solar Charger:

Maximum PV Charge Current: 120A Maximum PV Array Power: 7000W Number of Independent MPPT Tracker/Strings per MPPT Tracker: 2/1 MPPT Range: 60-145VDC Maximum PV Array Open Circuit Voltage: 150VDC Maximum Efficiency: >98%

AC Input:

Voltage: 230VAC Selectable Voltage Range: 154-272VAC (for appliances), 184-272VAC (for UPS) Frequency Range: 50/60HZ Maximum Charge Current: 80A

Mechanical Specifications:

Protection Degree: IP20 Dimensions (W/H/D): 380/650/255mm Net Weight: 66KG

Operating Environment:

Operating Temperature Range: 0-45 degrees Celsius

Experience the reliability and advanced features of the Growatt SPF 12KT HVM Off-Grid Storage Inverter, with the added benefit of a 2-year warranty and local company support service.
