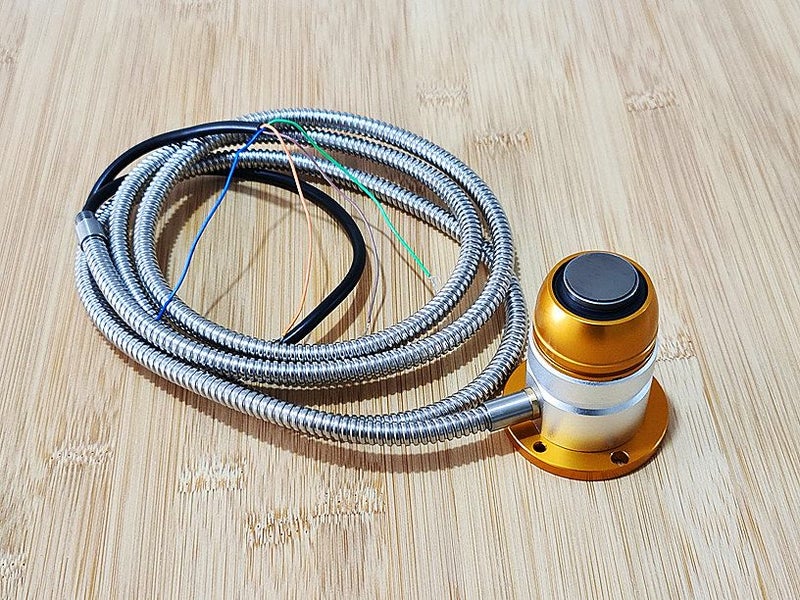

1x Brand New Z axis Tool Calibration Sensor ( Tool Presetter)

Note the tool has to be electrically conductive so the sensor can work.

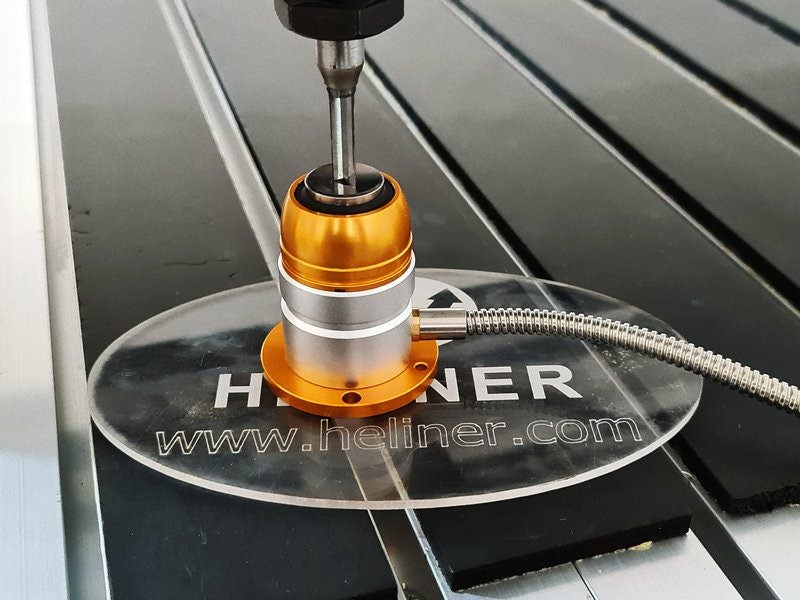

For Heliner's CNC routers, it can be wired the way Z axis resets to zero at the bottom surface of the tool presetter or the top surface of the stock if the presetter is placed directly on top of the stock, when the tool touches the top surface of the tool sensor.

For other mainchines, it needs to follow the machine instruction manual or talk to your machine supplier, and find out how to wire the tool presetter, so when the tool touches the top surface of the tool sensor, the tool can stop jogging down further and the system can reset Z axis.
