Description

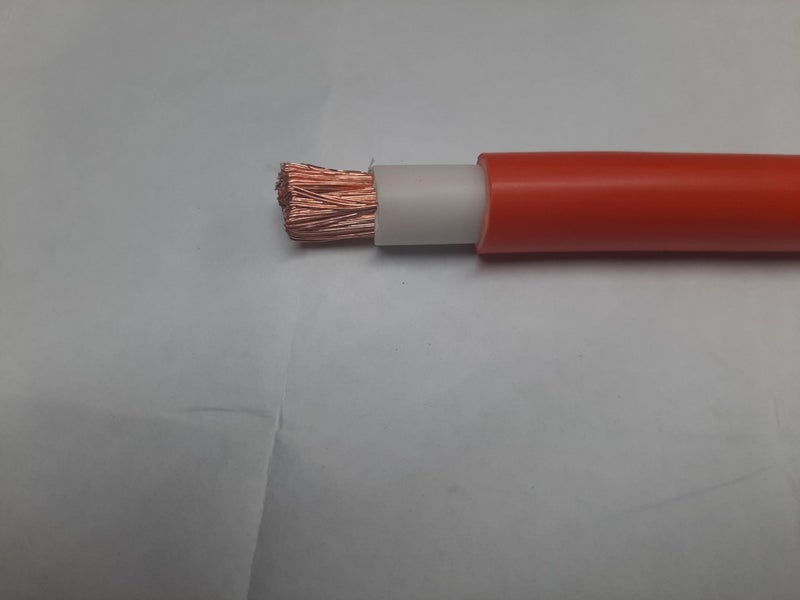

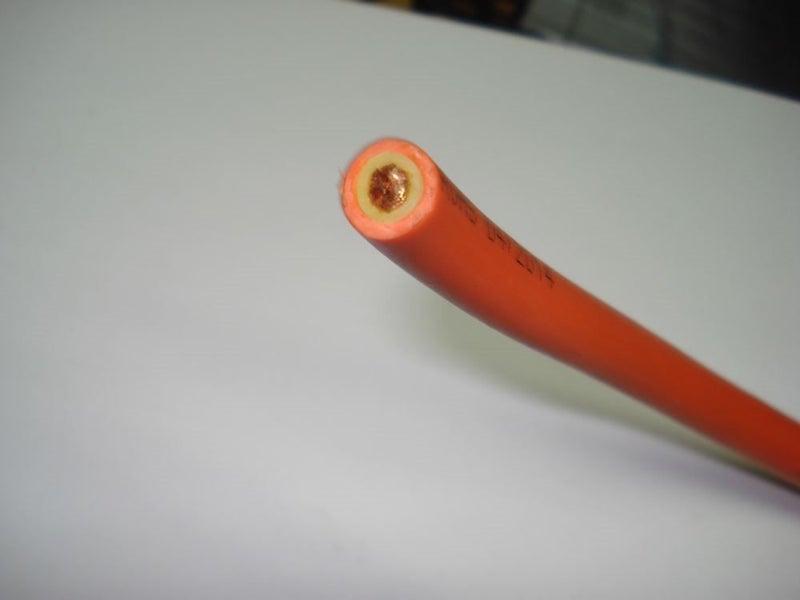

Flexible cable 50mm² CSA
Industrial quality suited to the welding industry / battery / UPS / Solar connection -Sold by the meter.
Cable is sized by the square millimeters or Cross-Sectional Area (CSA)
Diameter of the cable copper cores can be measured to calculate the CSA
CSA = (3.14 x d x d)/4 4.5mm dia = 16mm² CSA 5.6mm dia = 25mm² CSA 6.7mm dia = 35mm² CSA 8.0mm dia = 50mm² CSA 9.4mm dia = 70mm² CSA
The outside diameter of the cable is approx.
16mm²=9mm OD
25mm²=12mm OD
35mm²=13mm OD
50mm²=15mm OD
70mm²=16mm OD
American wire gauge (AWG) cable sizes
4 = 21mm² 2 = 33mm² 1 = 42mm² 1/0 = 53mm² 2/0 = 67mm² 3/0 = 85mm²
We also stock a full range of the bits you would want to fit on the ends of this cable like plugs, lugs, earth clamps, electrode holders, inline sockets for extension cables etc. If you buy fittings when you buy cable, we will crimp lugs and connect fittings to your cable for no extra cost.
For battery cables we will fit red heatshrink at the ends to identify the positive wire.

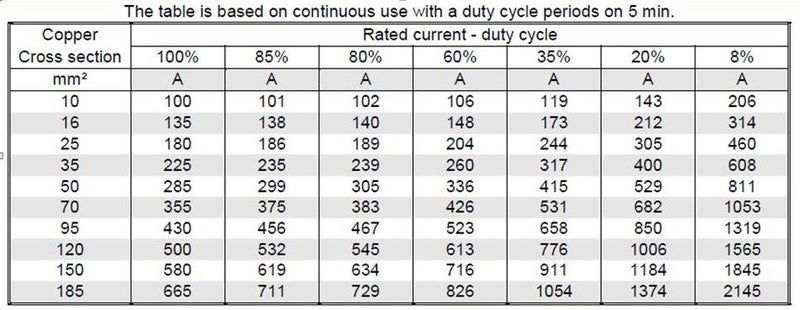

Complete electrode lead / earth lead (see the attached chart for cable/plug options
Much of our stock is not listed so question us if you are looking for a specific item or need a custom solution that our technicians can build to your requirement. Existing customers are also able to access our nationwide repair service. Most of our listings have options that can be selected using a drop-down menu found near the top right of this page. If you can not find an item you are looking for question and we will be only too happy to assist. If you would like to see our other listings just search our name Weldingstuff while ensuring you have selected "all categories" from the menu.
GST receipt will be emailed to you.
