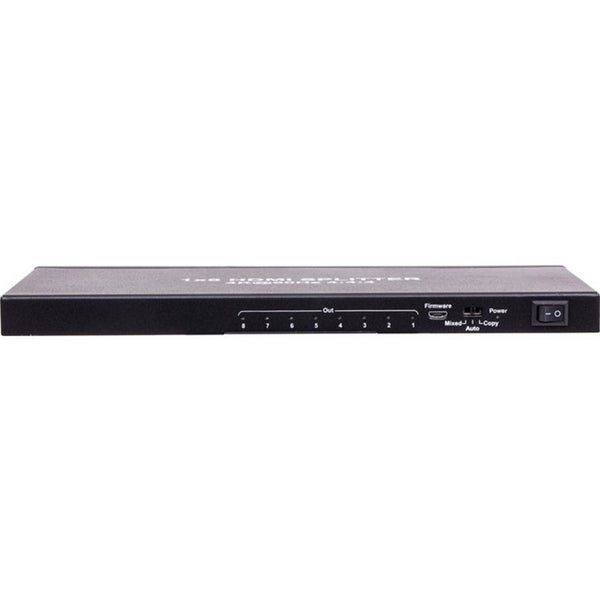

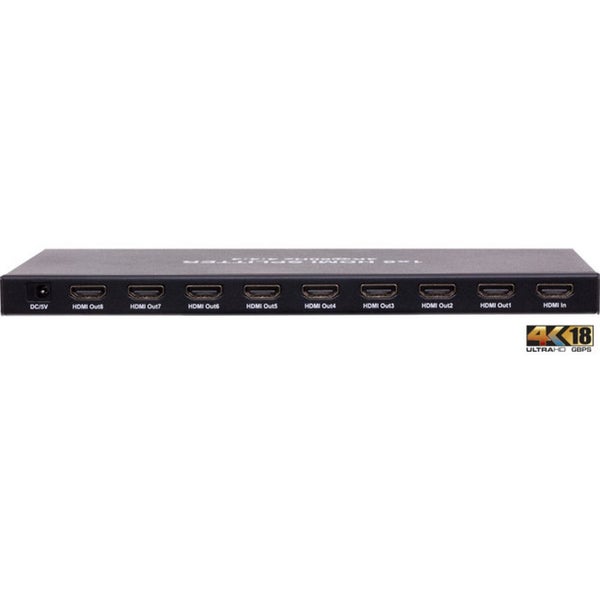

Pro2 is high quality HDMI splitters take a single signal input such as Bluray, HD TV, PayTV (Foxtel), Xbox, PlayStation etc.and split them into multiple outputs withoutany signal loss. Slim design, great for hiding behind TVs Up to 4K HDMI 2.0 UHD Great for todas 1080p 3D Supports 36 bit Deep Color, HDR, 3D Display resolutions up to 3840 x 2160 Powered for extended cable runs, equalising signals and re-clocking output Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display Ideal for a simple home setup up to a 16 monitor commercial installation Robust metal case of solid construction Specification HDMI Inputs 1 Supports 3D/4Kx2K HDMI Resolutions 480p / 720p / 1080i /1080p @ 60 Hz / 4K x 2K @ 24 Hz 4K x 2K out @60G YUV4:4:4 Audio Formats LPCM / Dolby-AC3 / DTS 7.1 / DSD Data Transfer Speed 18 Gbps Input Video signal 5.0 Volts P-P (TTL) Single Link Video Amplifier Bandwidth 140 MHz Transmission Distance 15 metres using standard HDMI/26AWG cable Power Supply (included) 5V 1A DC HDMI Outputs 8 Dimensions (LxWxH) 247.2x110x17mm Weight 610g Power Consumption 5W
