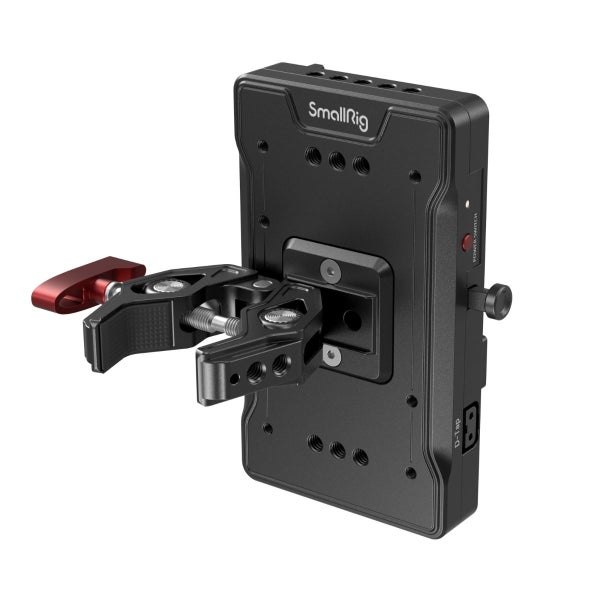

SMALLRIG ADVANCED V-MOUNT BATTERY MOUNT PLATE WITH CRAB-SHAPED CLAMP 3202B

• Standard V-mount, compatible with most V-mount batteries.
• PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
• D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.
• Supports 15-40mm rod for tripod, light stand, hand-held ring, etc.
• 1/4"-20 threaded holes for dual rod clamp, magic arm, etc.

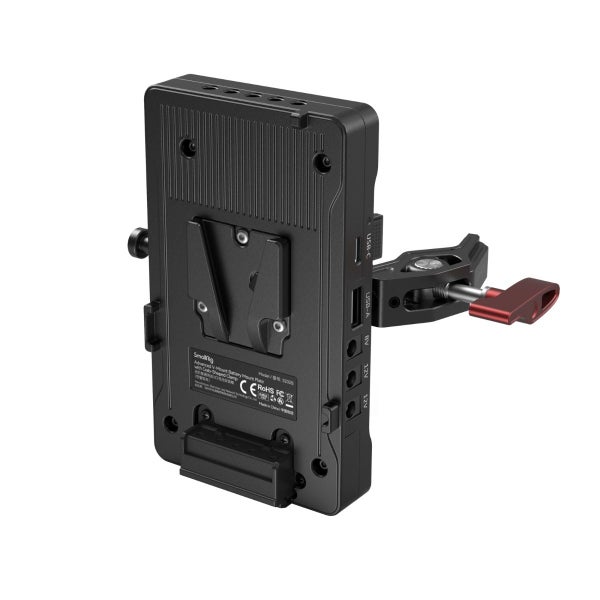

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes, and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support crab-shaped clamp, dual rod clamp, magic arm, etc. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

IMPORTANT Product weight and dimensions may have measurement errors.

SPECIFICATIONS Battery Compatibility: V-Mount Battery Crab-Shaped Clamp Compatibility: 15-40mm rod; V-mount battery weighing not more than 1700g Battery Voltage: 11.0V16.8V Battery Rated Capacity: 3500mAh20000mAh / 14.8V Cut-off Voltage: 11.0V Input Voltage (Max.): 16.8V Working Power (Max.): battery power (subject to battery capacity) Total Maximum Power : Discharging: 271W (Max.) D-Tap Rated Input / Output Current: 5A D-Tap Input / Output Current (Max.): 10A (subject to power adapter) ...
