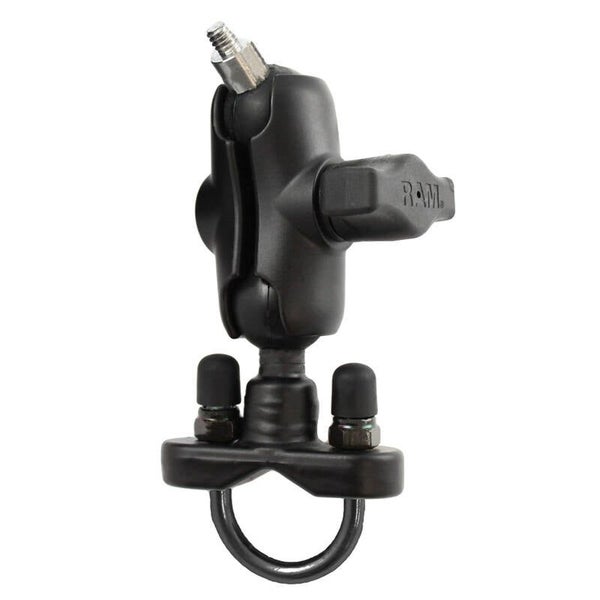

RAM-B-149Z-A-237U RAM(R) Handlebar U-Bolt Double Ball Short Mount with 1/4"-20 Threaded Stud

Features

• Threaded stud on ball works with cameras that contain 1/4"-20 Female Threaded Hole
• Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
• Short RAM double socket arm uses ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

This consists camera mounting for handlebars consists of a zinc coated U-bolt base, SHORT double socket arm and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.

The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

U-Bolt base will accommodate rails from 12.7 mm to 31.75 mm (0.50" to 1.25") in diameter. Also included are black cover caps to be placed over the exposed ends of the U-bolt and a composite adapter for narrower bars (to a minimum of 12.7mm)

Compatible Devices Cameras that contain 1/4"-20 Female Threaded Hole

Materials: Powder Coated Marine Grade Aluminium Zinc coated steel U-bolt

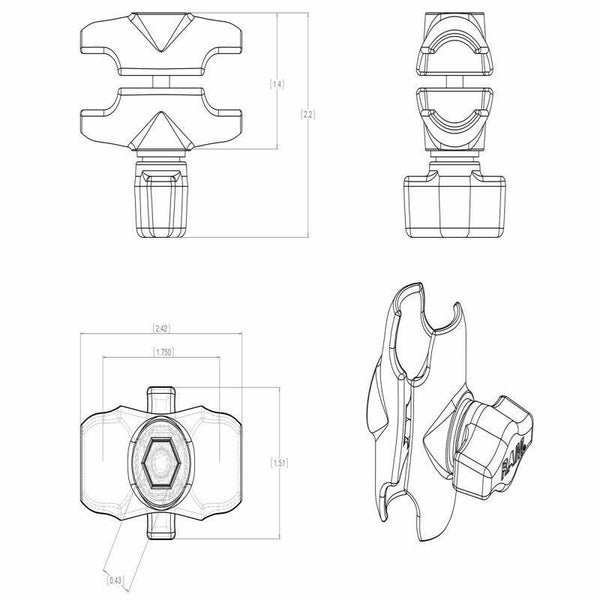

Arm Dimensions: Overall Length: 60.5mm (2.38") Socket-To-Socket Length: 51mm (2")

Hardware Included (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer

U-Bolt Dimensions: Rails 12.7mm to 32mm (0.5" to 1.25") diameter.

Ball Size: 1" Rubber Ball "B" Size

Weight: 277 grams (0.61 lbs.)

Weight Capacity Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 4...
